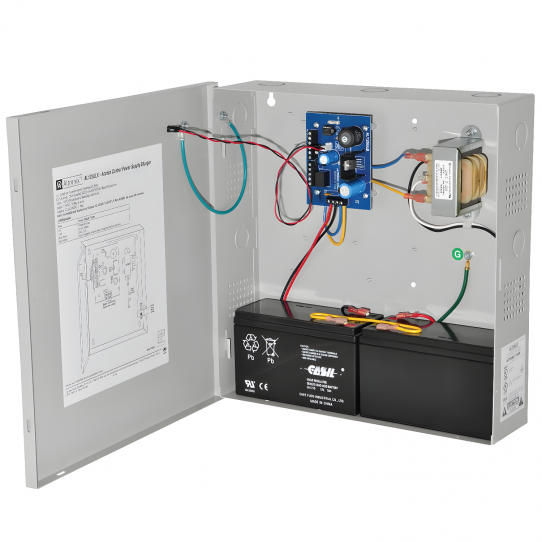

Altronix, AL125ULX Access Control Power Supply/Charger, 1A 12/24VDC output, UL294

Product Overview

Altronix AL125UL Series power-limited Power Supply/Chargers convert 115VAC 50/60Hz input into two individually PTC protected 12VDC or 24VDC outputs (see specifications).

They are intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with Fire Alarm Control Panels.

Features and Specifications

Input:

• 115VAC, 50/60Hz, 0.5A

Output:

• 12VDC or 24VDC selectable outputs
• 1A supply current
• Two (2) Class 2 Rated power limited outputs
• Fail-Safe/Fail-Secure lock output (switched)
• Auxiliary power output (unswitched)
• PTC protected outputs, rated @ 2.5A
• Filtered and electronically regulated output
• Short circuit and thermal overload protection

Battery Charging:

• Automatic switch over to stand-by battery when AC fails
• Maximun charge current: 400mA
• (Batteries Sold Separately)

Features:

• Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
• Lifetime Warranty

Dimensions

• Dimensions (approximate): 13.5 inches H x 13 inches W x 3.25 inches D (343mm H x 330mm W x 83mm D)
• Weight: 9.5lbs

Specifications

• Input: 115 VAC, 50/60 Hz, 0.5 A
• Output: Two Class 2 power-limited, PTC-protected outputs (rated 2.5 A), selectable 12 or 24 VDC, 1 A supply current
• Output Types: Fail-safe/fail-secure lock output (switched); auxiliary output (unswitched)
• Fire Alarm: Supervised fire alarm disconnect (latching with reset or non-latching)
• Battery Charging: Automatic switchover; maximum charge current 400 mA; batteries sold separately
• Dimensions (approximate): 13.5 in H x 13 in W x 3.25 in D (343 x 330 x 83 mm)
• Weight: 9.5 lbs
• Use: Interior only
• Warranty: Lifetime
