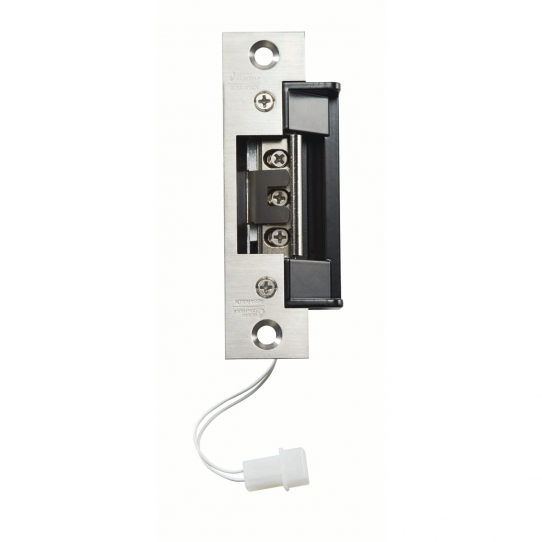

Alarm Controls AES-200 Gr 2 Electric Strike, Latch Monitor

$156.40 ~~$184.00~~

Overview

Designed for heavy-duty applications, the all-in-one AES-100 offers dual voltage and field selectable fail secure/fail safe operation. Deep latch cavity accommodates cylindrical locksets with a 5/8” to 3/4” throw in steel, wood or aluminum frames.

Product Overview

Designed for medium-duty applications, the all-in one AES-200 offers variable voltage and field selectable fail secure/fail safe operation. Deep latch cavity accommodates cylindrical locksets with a 5/8” throw in steel, wood or aluminum frames. Easy to install and connect.

Features

BHMA Grade 2

1000 lb. static strength

Factory cycle tested to 500,000 cycles ? Strike depth 1-1/2”

5/8” throw ? Adjustable keeper ? Strike monitored with SPDT (1 form C), dry contacts

Field selectable, fail safe/fail secure

Voltage 12 thru 24 VAC or VDC, continuous duty operation on DC

Fully reversible for right or left hand doors

Mounting kit includes two 4-7/8” stainless steel face plates (one round corner and one square corner)

Supplied standard with pre-load, 70 lbs. minimum ? Built-in buzzer, sounds when voltage is applied

Current draw 12 VAC 200mA, 24 VAC 70mA

Current draw 12 VDC 130mA, 24 VDC 70mA

7-7/16” round corner strike plate available. Model number STR00004

Dimensions

1-1/2'' W x 4-7/8'' H x 1-1/4'' D(31.8W x 124H x 31.8D mm)

Finish

Stainless Steel

Maglocks.com Rating

Better

Manufacturer

Alarm Controls

Manufacturer Warranty

2 Year

Model Number

AES-200

Power Requirements

24VDC/12VDC

Status Monitor

Standard

Datasheet PDF

Installation PDF
