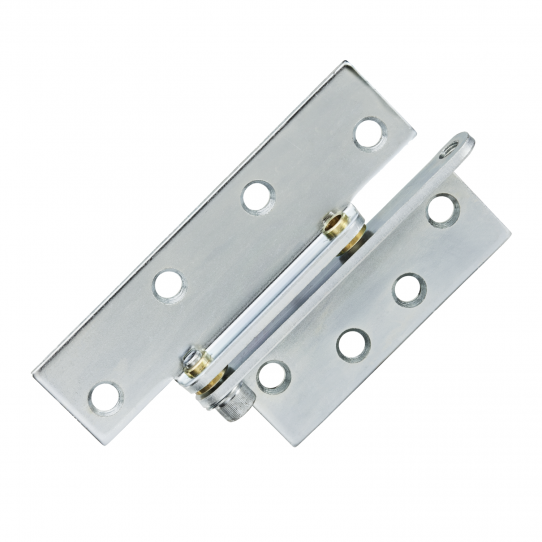

Adams Rite, B1923 Reinforcing Pivot, Surface Mount, Fix for Sagging Doors

Product Overview

The quick and economical way to solve door sag problems.

This full-surface reinforcing pivot adds years of life to openings where the hinges or hinge reinforcements have failed. Reinforcing pivots take the load off the top hinge and transfer it to screws that are in shear so they will not pull off.

Installs at the top of the door. For Hollow Metal or Wood doors that utilize a 4-1/2 inch wide butt hinge.

Specifications

• Capacity: supports weights up to 300 lbs
• Cycle tested: 1,500,000 cycles
• Material: 3/16 in heavy duty cold-rolled steel, zinc plated
• Offset: 3/4 in (19.1 mm), matching the pivot point of a 4-1/2 in (114.3 mm) wide butt hinge
• Handing: symmetrical, non-handed
• Installation: surface mount at the top of the door; for hollow metal or wood doors
• Model: B1923
