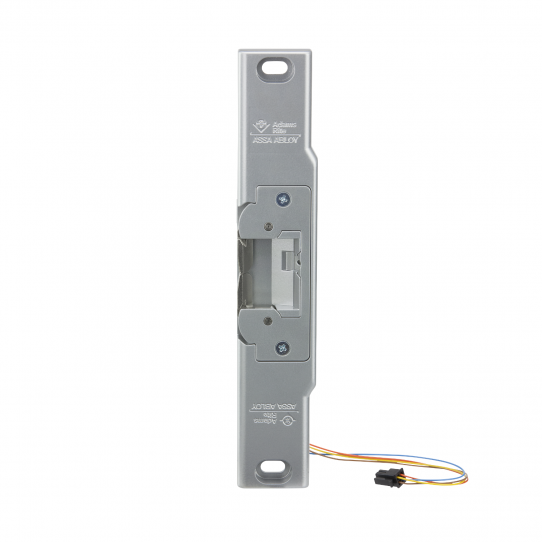

Adams Rite 74R2 Strike for 1/2 Narrow Rim Exit, Grade 1

Product Overview

Adams Rite is known around the world for durable and reliable door hardware. Our latest line of premium electric strikes, the UltraLine 7400 series, casts that reputation in solid steel. UltraLine Strikes feature an adjustable split-jaw design, and can operate with up to 25lbs. of door preload that can disable other electric strikes.

Model

• 74R2: Electric Strike for use on Narrow Stile Rim Exit Devices with 1/2 inch bolt on aluminum door frames

Specifications

Field selectable voltage to match power source of 12, 16, or 24 VAC/VDC

• 12VDC 40mA
• 16VDC 458mA * Requires 16VDC adapter (P/N VA 7400-16VDC)
• 24VDC 230mA
• 12VAC 163mA
• 16VAC 228mA
• 24VAC 84mA

Dimensions:

• 74R2: 1-13/32 inch x 3-3/8 inch x 1-1/8 inch deep [35.7mm x 85.7 mm x 28.6 mm deep]

Strike Opening:

• 74R2: 5/8 inch x 1-7/16 inch x 1/2 inch deep [15.9 mm x 36.5 mm x 12.7 mm deep]

Faceplate:

• 74R2: 1-5/8 inch x 9 inch x 1/2 inch [41.3 mm x 228.6 mm x 12.7mm]

Latchbolt Projection:

• 74R2: 1/2 inch [12.7 mm]
