XRE-100 and TX-100-NC Extreme Range Wireless Kit
Processing...

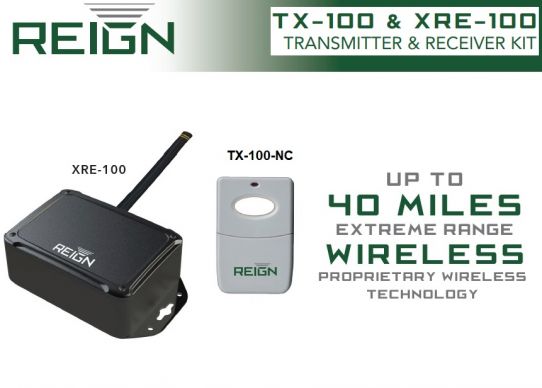

XRE-100 and TX-100-NC Extreme Range Wireless Kit

$298.00

Overview

The Reign TX-100 & XRE-100 transmitter/receiver kit is a revolutionary product. This product allows for wirelessly triggering a relay through a battery powered hand held transmitter with extreme range, no line-of-sight wireless technology.

The Reign XRT-100/XRE-100 kit allows for triggering a dry contact relay (up to 40 Miles) using our proprietary wireless technology and our handheld transmitter.

More Info +



Qty

Product Details

Product Overview

Extreme long range wireless kit can be used for releasing gates, doors and locks.

The Reign XRE-100/TX-100-NC kit allows for triggering a dry contact relay (up to 40 Miles) using our proprietary wireless technology and our handheld transmitter. Actual results will vary and obstructions like concrete or brick or steel will greatly reduce range.

What's Included

  • (1) XRE-100 receiver
  • (1) TX-100-NC transmitter

Standard Features

  • Receiver Security: AES128 Wireless Encryption
  • Relays: 2 outputs, SPDT, 3A (220V DC/250V AC)
  • Relays: Selectable Latching or Momentary
  • Memory: 150 transmitters
  • Range: Up to 40 Miles*
  • Transmitter Power: 9V Battery

Technical Specifications

  • Power Requirements: 12-24VAC/VDC
  • 12V Current consumption: 50mA (idle), 1A (transmit)
  • 24V Current consumption: 25mA (idle), 500mA (transmit)
  • Operating temperature: -40 F to 185 F(-40 C to 85 C)
  • Receiver dimensions: 3-3/4 inches x 5-1/4 inches x 2 inches
  • Transmitter dimensions: 2-3/8 inches x 3-1/2 inches x 3/4 inches

*40 miles under optimal conditions with no obstructions, acutally results may vary.
*low-voltage power supply sold separately, required to power XRE-100 receiver

Also Known As
Reign XRE-100 & TX-100-NC kit
Manufacturer
Transmitter Solutions
Model Number
XRE-100 & TX-1000-NC kit
Power Requirements
24V/12V AC/DC
