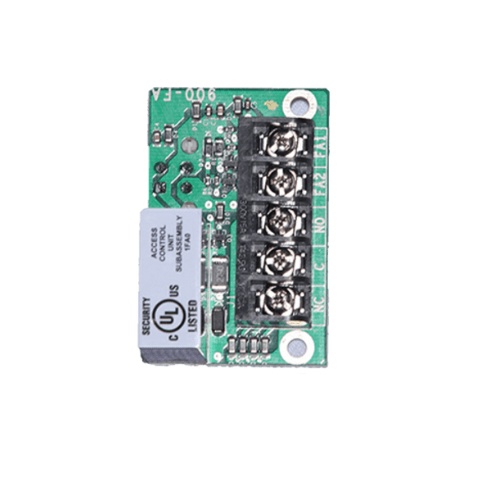

Von Duprin, 900-FA Plug-in Relay Board to Provide an Interface with Fire Systems, Board Only

Overview

Plug-in Fire Alarm Interface Module for the PS900 series Power Supplies (sold separately)

Compatibility

The 900-FA Fire Alarm Module is compatible with the below power supplies:

• PS906
• PS904
• PS902
• PS914

Technical Specificiations

• Input (Fire Alarm): Dry contacts required (Closed = no fire alarm), Connect control contacts between FA1 and FA2
• Output (Supervision): 30VDC, 1A resistive dry contact
• Board Input Power: Board requires 0.05A max. of power supply output current to operate
• Temperature Range: 32-120 F (0 - 49 C)

Certifications

• UL 294
• ULC-S318
• RoHS
• FCC Part 15

Model

• 900-FA: Fire Alarm Interface Module, Board

*note, PS900 series Power Supplies (sold separately)
