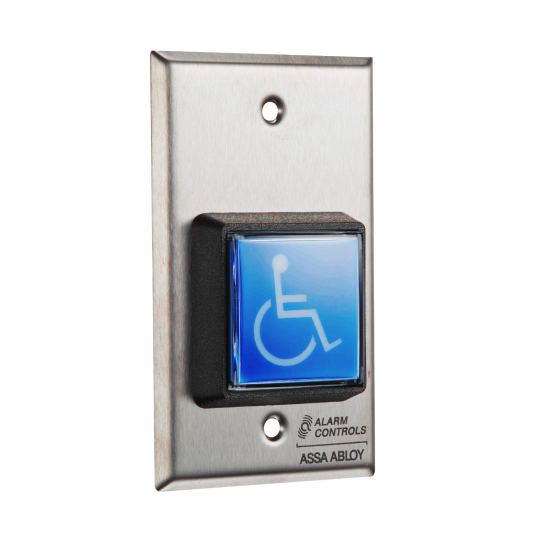

TS-4 Single Gang Mount Button, ADA Symbol

Product Overview

The TS-4 request to exit station, with square push button, provides a convenient way to add authorized access control to a variety of applications.

Blue push button is labeled with ADA symbol to indicate accessibility compliance.

Specifications

• Button: blue, 2 in square, ADA symbol, momentary action, illuminated with high-brightness LED
• Contacts: S.P.D.T., rated 10 A @ 35 VDC or 120 VAC
• Plate: single gang stainless steel; depth behind plate 2-1/2 in
• Listing: UL listed (file SA32686), conforms to UL 294 for access control
• Models: TS-4, TS4
