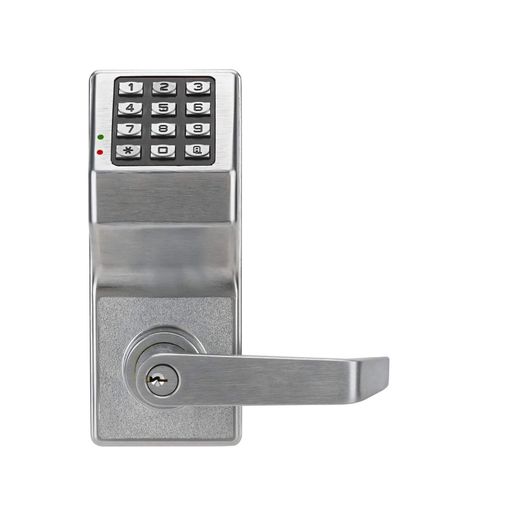

Trilogy T2 DL2700 Battery Latch Lock 100 user

$605.54 $756.93


The DL2700 Trilogy battery operated single latch lockset allows for up to 100 user codes (3-5 digits) and does not require a computer for programing. Retrofits cylindrical knobsets and digital locks using a slightly modified ANSI A115 series prep.

Easy to install battery powered operation makes this lock a great choice for hospitals, schools, airports, office buidings, server rooms, pharmacys etc..

Features:• Up to 100 user codes
• Multi-level user codes
• Uses standard AA batteries x 5
• Mechanical key override included
• Easy to install in about an hour
• Grade 1 BHMA Certified durability

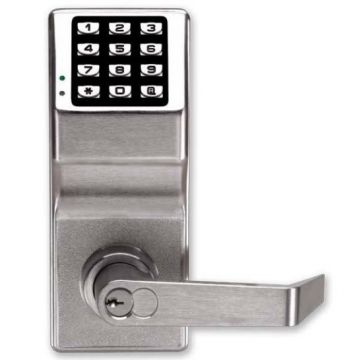

*WP weatherpoof models also available for exterior doors.

More Info +

Select Finish:


Product Details

Product Overview

Trilogy T2 DL2700 Battery, Latch Lock, 100 user

Operation:: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress.

Door Thickness: 1 5/8 inches to 1 7/8 inches. Other thicknesses. Please consult Alarm Lock.

Backset: 2 3/4 inches Standard. 2 3/8 inches backset also available.

Keypad: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced.

Stand Key Orverride Cylinders:Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage, Corbin/Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders.

Interchangeable Core Models: Accepts 6 and 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark and Kaba Peaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.(Please call to order INTERCHANGEABLE CORE MODELS)

Latchbolt: UL Listed, fire rated, 3 hours, 1/2 inches throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.

STRIKE: 1 1/8 inches x 2 3/4 inches T strike and 1 1/4 inches x 4 7/8 inches ASA strike inc

Latch Front: 1 1/8 inches x 2 1/4 inches wrought brass or stainless steel.

Handing: Non-handed.

Finished: US3 polished brass, US26D satin chrome, US26 polished chrome, US5 antique brass, 10B Duronodic.

Power: 5 AA alkaline batteries are now rated at 120,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex DriveĀ® motor.

Door Preparation: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.

Compliances: Grade I, heavy duty cylindrical lockset, UL listed and FCC certified. ADA compliant leversets.

Also Known As
ALA100DL2700US26D, DL2700US26D
Satin Chrome
Alarm Lock
Manufacturer Warranty
2 Year
