Trilogy PDL3000 Battery Pin/Prox Lock, 2000 user, Weather

Product Overview

KEYPAD: Weatherproof with operating temperature range of -31°F to +151°F (-35°C to +66°C), all metal, 12-button programmable for multi-level access functions. Proximity antenna housing molded of ultra high strength, impact resistant Lexan®.

HID (H10301) Proximity Reader: Built-in, weather-sealed HID (H10301) reader supports virtually all HID (H10301) cards and HID (H10301) fob credential formats.

Product Features

• DOOR THICKNESS: 1 5/8 inch to 1 7/8 inch standard. For 1 3/8 inch doors use HW567 & HW569 spacers. For other other thicknesses, please consult factory.
• BACKSET: 2 3/4 inches Standard. 2 3/8 inches backset also available.

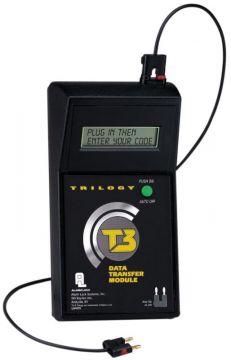

• AUDIT TRAIL: Lock's activity log can be extracted by using the AL-DTMIII (data transfer module*), the AL-PCI2 (PC interface*) and/or can be on-site printed using the AL-IR1 (hand-held infrared printer*). **Audit equipment sold separately**
• STRIKE: 1-1/8” x 2-3/4” T strike standard. With screws for wood or metal jambs. 1 1/4" x 4 7/8". ASA strike also included.
• FINISHES: US3 polished brass, US4 satin brass, US26D satin chrome, US26 polished chrome, US5 antique brass, US10 satin bronze and US10B duronic.
• DOOR PREP: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.
• RETROFITS: Retrofits most cylindrical locksets.
• COMPLIANCES: BHMA Certified Grade I, heavy duty cylindrical lockset, UL listed to the 10C Positive Pressure Specification. Latchbolt is UL listed and 3-hour fire rated, FCC certified. ADA compliant levers.
• STANDARD KEY OVERRIDE CYLINDER: Solid brass 6 pin tumbler cylinder keyed 5, SCI keyway, furnished in all K.O. models. Tailpieces for Schlage (HW580) & Lori (HW620) cylinders (furnished).
• ELECTRONIC MASTER KEY SYSTEM: With access customized to each user's hours - Give each user access to common areas and/or their individual area(s) and do so defined by the actual times they are permitted entry there.
• GREATER SECURITY: Temporary keypad lockout after 6 wrong code-entry attempts (adjustable from 1-9 attempts)

Specifications

• Model: PDL3000
• Also known as: ALA100PDL3000US26D, ALARM-LOCK-PDL3000-US26D
• Manufacturer: Alarm Lock (Trilogy)
• Type: Battery-powered PIN/prox cylindrical lock with built-in HID (H10301) reader, 2,000 users
• Keypad: Weatherproof, all metal, 12-button; operating temperature -31°F to 151°F (-35°C to 66°C)
• Door thickness: 1-5/8 inches to 1-7/8 inches standard (1-3/8 inch doors with HW567 and HW569 spacers)
• Backset: 2-3/4 inches standard; 2-3/8 inches available
• Strike: 1-1/8 inches x 2-3/4 inches T strike; 1-1/4 inches x 4-7/8 inches ASA strike included
• Door prep: ANSI A115 series, modified with additional through-bolt holes
• Compliance: BHMA Grade 1; UL listed to 10C positive pressure; latchbolt UL listed 3-hour fire rated; FCC certified; ADA compliant levers
• Key override cylinder: Solid brass 6-pin, keyed 5, SCI keyway
• Security: Temporary keypad lockout after 6 wrong code attempts (adjustable 1-9)
• Audit trail: AL-DTMIII, AL-PCI2 or AL-IR1 (sold separately)
• Finishes: US3, US4, US26D, US26, US5, US10, US10B
• Power: Battery
• UPC: 696738740723
