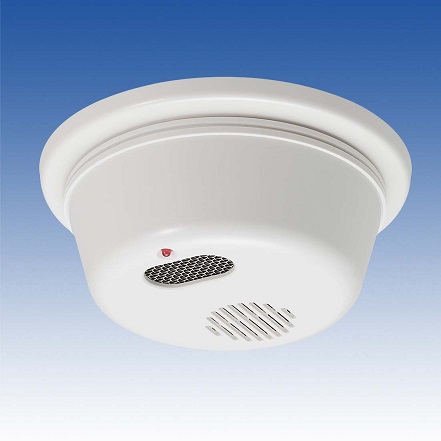

TAKEX, FS-3500E Flame Detection Sensor, with built-in Alarm

Product Overview

The FS-3500E Flame Sensor immediately detects UV rays contained in flames to trigger a pre-recorded "flame prohibition" or "non-smoking" message output in a choice of 5 languages; English, Spanish, Japanese, Chinese and Korean.

This product can be used warn people of non-smoking areas using the local alarm.  It can also be hard-wired to a remote alarm to alert staff that a flame has been detected and requires attention.

Battery Powered option allows for easy installation.

Standard Features

• High sensitivity ultraviolet flame sensor
• Pre-recorded flame prohibition and non-smoking messages
• 5 languages; English, Spanish, Japanese, Chinese, Korean
• Local Alarm 80dB/1m (max)
• Alarm Dry Contact Output, 0.25A at 30VDC resistive load, (NO or NC, selectable)
• Tamper Dry Contact Output, 0.10A at 30VDC/AC resistive load, (NC)
• Battery Powered or 12/24VDC low voltage hardwired

Product Applications

• Restaurants, Schools, Airbnb vacation rentals, Boats (engine room), Hospitals, Bathrooms, Fuel Oil & Gas storage, EV Chargering stations, etc
• Non-smoking areas
• Flame detection

Manufacturer Specifications

• Detection system:Ultraviolet rays detection
• Battery Life: AA alkaline approx. 2 years/Lithium battery approx. 5 years
• Power Consumption: 9mA or less (standby), 220mA or less (alarm)
• Detection distance: 10m (7cm flame)

ENVIRONMENTAL SPECIFICATIONS

• Ambient temperature:+14° F to +122° F (-10° C to +50° C) without condensation

Finishes

• White, ABS Resin

Additional Information

• This sensor is designed to detect flames and to initiate an alarm; it is not a fire-preventing device. TAKEX is not responsible for damage, injury or losses caused by accident, theft, Acts of God (including inductive surge by lightning), abuse, misuse, abnormal usage, faulty installation or improper maintenance.
• This sensor detects ultraviolet rays in the flames and initiates an alarm. It does NOT detect smoke, heat.
