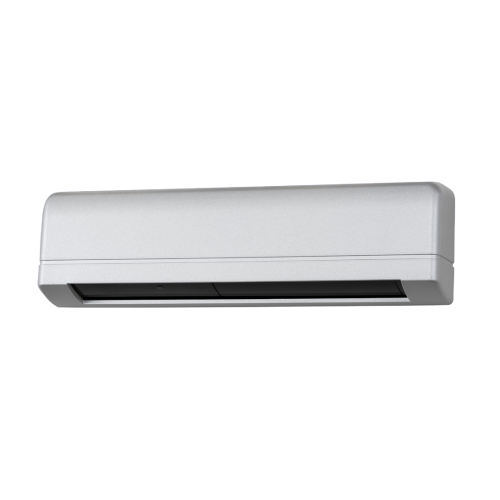

TAKEX, DA-303S Active Infrared Motion & Presence Sensor for Automatic Doors

Product Overview

The DA-303S series Auto Door Sensor uses near infra-red beams (High-Density: 32 Zones/4 Rows) to detect the movement of a human or object to output a signal to an auto-door engine.

Standard Features

• Single or Double Door Coverage
• Stable detection even in rain, snow, floor surface change or in the flying insects situation is kept by now mode
• Indoor, semi-outdoor : Transom

Manufacturer Specifications

• Detection system: Active Near Infrared
• Supply voltage: 12VDC/100VAC
• Current consumption: 80mA or less / DC, 2.4VA or less / AC
• Contact output: Dry contact relay N.O.
• Mounting position: Surface mount
• Weight: (180g)

ENVIRONMENTAL SPECIFICATIONS

• Ambient temperature: (-20° C to +60° C)

Finishes

• Silver

Specifications

• Model: DA-303S Active Infrared Motion and Presence Sensor
• Manufacturer: Takex
• Detection System: Active near infrared (32 zones, 4 rows)
• Coverage: Single or double door
• Supply Voltage: 12 VDC / 100 VAC
• Current Consumption: 80 mA or less (DC); 2.4 VA or less (AC)
• Contact Output: Dry contact relay, N.O.
• Weight: 180 g
• Operating Temperature: -20° C to +60° C
• Mount: Surface mount
• Finish: Silver
• Use: Triggering automatic door operators; indoor and semi-outdoor (transom)
