Single Outdoor Maglock Kit For Inswing Gates

$781.49

Overview

Complete single door access control system with weatherized magnetic lock for square post inswing or sliding gates.  Included CC-3800 series reader allows for PIN or Proximity card entry.

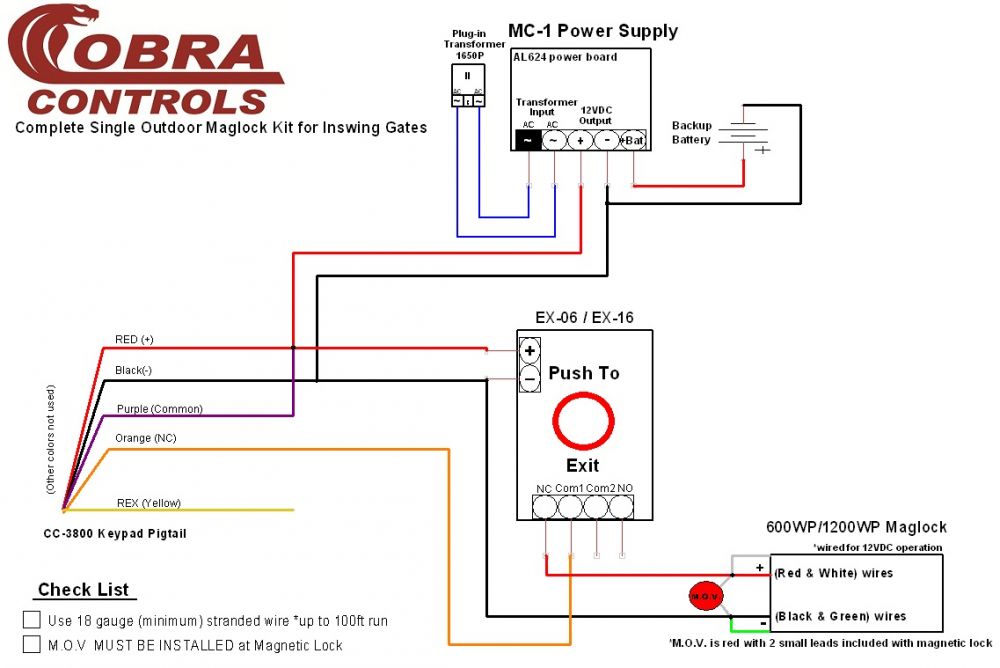

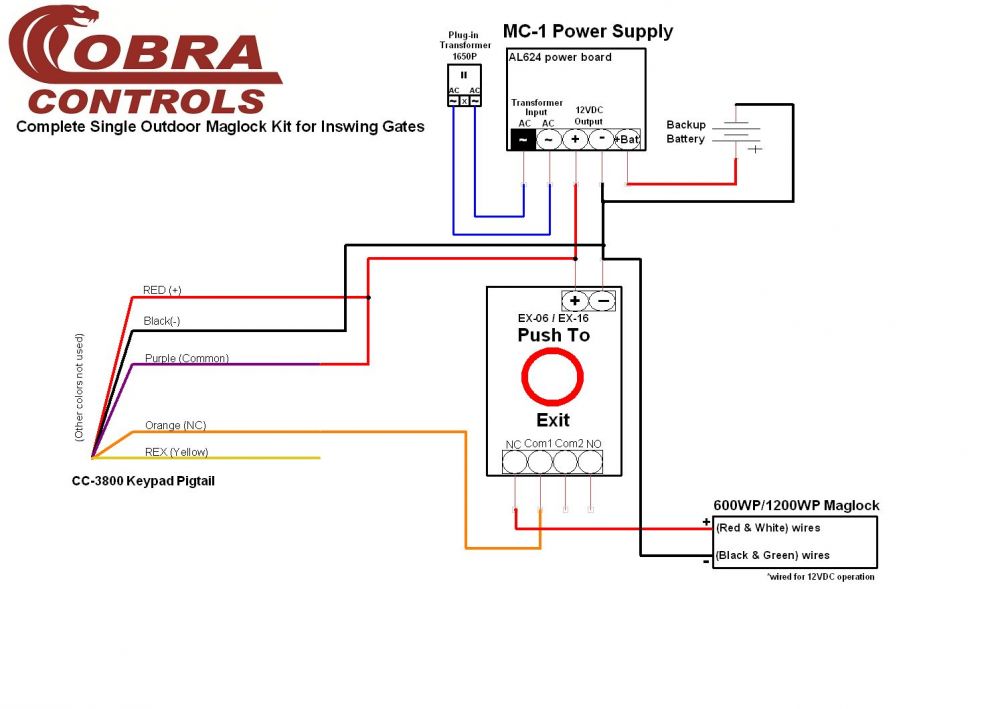

Kit Configurations Available with:

  • CC-3800 or CC-3800-MUEM Outdoor Rated Digital keypad + proximity reader
  • 600WP or 1200WP weatherized magnetic lock
  • AM3370 or AM6370 bracket for inswing or sliding gates
  • EX-06 Single Gang or EX-16 Narrow mount Vandal Resistant Request to exit pushbutton
  • MC-1 Maglocks.com power supply 12VDC 1.2 amp power supply and metal enclosure
  • SLA1055 12VDC, 5ah backup battery (included with MC-1 power supply)
  • PCS-1 Proximity Cards included in Kit Purchase!
  • Weather Guard for CC-3800 and CC-3800-MUEM available

For assistance with this kit please use the Live Chat feature or Call us Toll Free at: 1-866-500-5625

More Info +


Select Keypad and Proximity Reader:
Select Exit Button:
Select Locking Hardware:
Additional Proximity Cards (5 Cards included with kit):
Wire (no wire included with kit):
Options

Qty

Product Details

Product Overview

Single door access control system inlcudes a 600lb or 1200lb weatherized magnetic lock with inswing bracket, PIN/Prox reader for entry, Request to Exit devices and Power Supply with battery backup.

Power supply with battery backup ensures your gate remains secure and all system components remain operational in the event of a power failure.

Features

  • PIN or Prox card entry
  • 5 Prox cards included with kit purchase
  • 2000 user capacity
  • All programming is done through the keypad
  • 1 form C relay with programmable hold open delay
  • Weather-proof stanless steel construction
  • 600lbs or 1200lbs holding force magnetic lock with conduit fitting

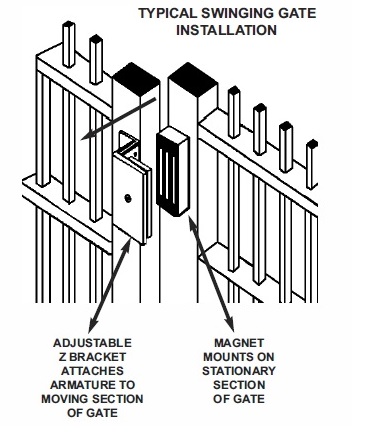

  • Gate bracket assembly for inswing or sliding gates

Keypad Dimensions:

  • CC-3800: 4-3/4 inches L x 3-1/8 inches W x 1 inches D
  • CC-3800-MUEM: 4-11/16 inches L x 2-1/4 inches W x 3/4 inches D

Lock Dimensions:

  • 600WP magnet size: 8-21/32" L x 1-9/32" H x 1-1/8" W
  • 600WP armature size: 7-9/32" L x 1-21/32" H x 1/2" W

  • 1200WP magnet size: 9-1/16" L x 2-5/8" H x 1-1/16" W
  • 1200WP armature size: 7-9/32" L x 2-5/8" H x 5/8" W

Exit button Dimensions:

  • EX-06: Single Gang Exit button (4.5 inches H x 2.75 inches W x 1.25 inches D)
  • EX-16: Narrow Mount Exit button (4.5 inches H x 1.75 inches W x 1.25 inches D)

Power Supply Specifications:

  • MC-1: 1.2amp at 12VDC, featuring a 12vdc, 5aH backup battery
  • Estimated Battery Backup Life (SLA1055) with single maglock system: 7 1/2 hours

Kit Configurations Available with:

  • CC-3800 or CC-3800-MUEM Outdoor Rated Digital keypad + proximity reader
  • 600WP or 1200WP weatherized magnetic lock
  • AM3370 or AM6370 bracket for inswing or sliding gates
  • Single Gang or Narrow mount Vandal Resistant Request to exit pushbutton
  • MC-1 power supply 12VDC 1.2amp power supply and metal enclosure
  • SLA1055 12VDC, 5ah backup battery
  • PCS-1 Proximity Cards BONUS: 5 PCS-1 Proximity Cards included in Kit Purchase!
  • Weather Guard for CC-3800 / CC-3800-MUEM available

For assistance with this kit please use the Live Chat feature or Call us Toll Free at: 1-866-500-5625

Also Known As
Gate Lock kit, Magnetic Lock Kit for Gates, Inswing Gate magnetic lock kit
Manufacturer
Maglocks.com
Manufacturer Warranty
2 Year
Model Number
Single Outdoor Maglock Kit For Inswing Gates
Power Requirements
12VDC
2 Questions asked on Single Outdoor Maglock Kit For Inswing Gates



Q Keith Arnst • 04/04/2023, 7:11:20 PM For the Single Outdoor Maglock Kit For Inswing Gates SINGLE OUTDOOR MAGLOCK KIT FOR INSWING GATES can a timer be added for it to open at 8am and lock at 8pm?

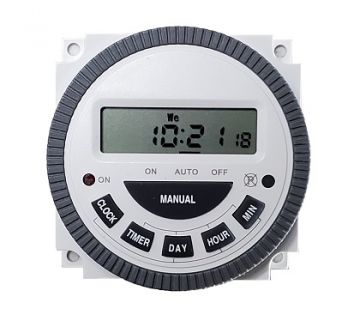

A 04/05/2023, 11:56:44 AM Yes, that is possible using the MPT17-12 timer option. With that timer you can setup Automatic Lock/Unlock schedules based on different days of the week. The timer also features a manual override button to easily set the system to a permanent unlock or locked mode. To go over this system and the timer capabilities in further detail, please give us a call direct at 1-866-500-5625
Q ryan dupler • 04/23/2024, 9:44:47 AM Does the kit include the AM3370 bracket?
A 04/24/2024, 2:40:01 PM Yes, the kit will included the appropriate bracket based on the lock selected. When selecting the 600WP lock it will include the AM3370 bracket & when selecting the 1200WP lock it will include the AM6370 bracket. If there are any additional questions regarding this Gate Kit feel free to give us a call at 1-866-500-5625
