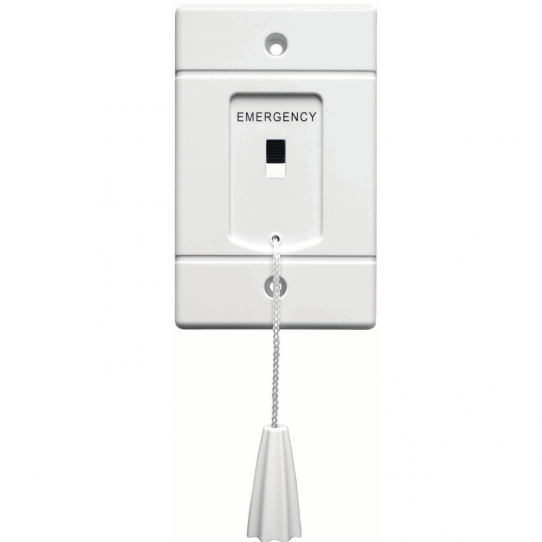

SF-117 Emergency Call Switch

Product Overview

The model SF-117 Emergency Call Switch is a rugged, long life, positive acting switch mounted on a durable ABS plastic faceplate. Signaling an emergency requires just a short pull on the 6 foot long nylon cord, in any direction. The signal cannot be cancelled except at the point of origin. The SF-117 provides two circuits to operate one or two signaling devices, such as a remote annunciator lamp, and a corridor dome lamp. A unique feature of the call switch is that it has a mechanical indicator window that turns "RED" when the call switch is activated. This provides a "Call Placed" Capability without the need for any lamp indicators, additional power supplies, or additional wiring.

The SF-117 emergency call switch is silk-screened "EMERGENCY" in black.

Specifications

• Switch: D.P.D.T., contacts rated 6 A @ 125 VAC
• Circuits: two, for one or two signaling devices
• Cord: 6 ft white nylon with plastic tassel
• Faceplate: white ABS plastic, silkscreened "EMERGENCY" in black
• Indicator: mechanical window turns red when activated
• Size: 4.5 in L x 2.75 in W x 1.5 in D
• Mounting: standard single gang box
• Models: SF-117, SF117
