Securitron PB5 Round Push To Exit Button

$76.80 $128.00

Overview

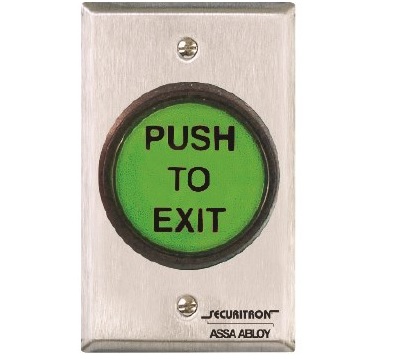

The model PB5 is a spring loaded momentary 2 inch diameter, illuminated exit button, mounted on a stainless steel single gang outlet box cover. Includes switchable Green, Red and Blue ADA lenses

The contacts are UL listed with 5-AMP capacity.

More Info +


Qty

Product Details

Product Overview

The model PB5 is a spring loaded momentary 2 inch diameter, illuminated exit button, mounted on a stainless steel single gang outlet box cover. The DPST contacts switch when the button is depressed and return when it is released. The contacts are UL listed with 5-AMP capacity.

The PB5 can be used for momentary release of fail safe or fail secure electric locks. It may also be used to input a REX (request to exit) signal to a card reader system for release of an electric lock.

We recommend that the local building or fire safety authority be consulted prior to using exit buttons for door egress. They may require a "no special knowledge" exit device such as Securitron's Touch Sense Bar.

Features

  • Includes switchable Green, Red and Blue ADA lenses
  • 5 Amp rated contacts
  • Stainless Steel single gang plate: 4.5 inch x 2.75 inch [114mm x 70mm]
  • Field convertible from DPST to DPDT

Model

  • PB5: Push-To-Exit Button, 2 inch Round, Momentary, DPST, w/Light, SG, Red/Grn/Handicap

Specification

  • 9mA at 12VDC
  • 20mA at 24VDC
  • 5A rated SPDT relay

Dimensions

  • Stainless Steel single gang plate: 4.5 inch x 2.75inch [114mm x 70mm]
Finish
Stainless Steel
Maglocks.com Rating
Better
Manufacturer
Securitron
Manufacturer Warranty
Lifetime
Power Requirements
24VDC/12VDC
Type
Basic
