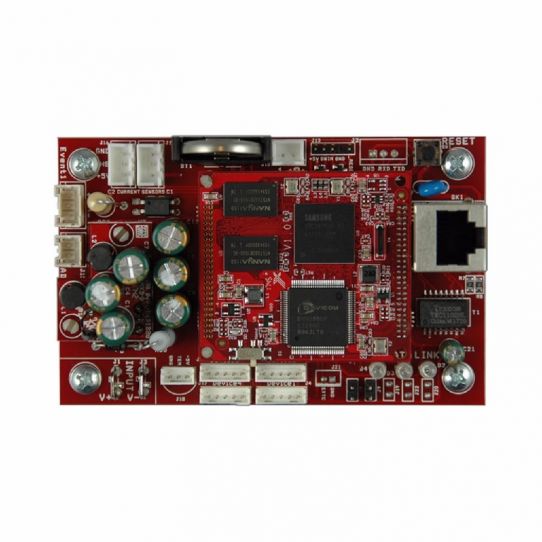

Securitron, NL4 Netlink Power Monitoring Module for AQL Power Systems
$502.11
$604.95
Product Overview
The Securitron AQL Netlink (NL4) power monitoring module is a four input data network module that communicates power status over a local or wide network. The Securitron NL4 provides SPI ports for connection to Securitron devices that enables monitoring of the power system. Typical data reported includes operational status, power supply output voltage, charging voltage, battery charging current, and fire alarm input status.
Product Features
- Monitoring and reporting for health and status of host power supply and battery set
- 1000 event buffer
- Time/Date stamp log reports last 1000 events
- Auto-schedule, test and report battery standby time
- Remote supervision of battery's state of charge
- Monitoring internal cabinet temperature
- Monitoring external room temperature with "over temp" alert
- Remote power cycling control of external equipment
- SNMP set and trap notification on version 1, 2 or 3
- Encrypted password, user and certificate logging
- MagnaCare® lifetime replacement, no-fault, no questions asked warranty
Product Specifications
- Input Operating Voltage: 9 to 30 VDC
- Input Operating Current: 60 mA nominal
- Network Data Rate: 10/100Mbps
- Event Input: 9 to 32 VDC
- Output: 1, 2 Max Sink
- Current: 50 mA nominal
- Dimensions: 4 inches x 2.5 inches x 1.5 inches [101.6mm x 63.5mm x 38.1mm]
Models
- NL4 - Netlink Power Monitoring Module for AQL intelligent power systems.
Certifications
- UL 294 Listed
- UL603 Listed
- UL1076 Listed
- ULC-S318 Listed
- ULC-S319 Listed
- CSA C22.2 #205
Specifications
- Model: NL4
- Also known as: AQL NL4
- Manufacturer: Securitron
- Type: Netlink power monitoring module (four-input data network module) for AQL intelligent power systems
- Input operating voltage: 9 to 30 VDC
- Input operating current: 60 mA nominal
- Network data rate: 10/100 Mbps
- Event input: 9 to 32 VDC
- Output max sink current: 50 mA nominal (outputs 1 and 2)
- Event buffer: 1,000 events with time/date stamp
- Notifications: SNMP set and trap, versions 1, 2 or 3
- Dimensions: 4 inches x 2.5 inches x 1.5 inches (101.6 mm x 63.5 mm x 38.1 mm)
- Listings: UL 294, UL 603, UL 1076, ULC-S318, ULC-S319, CSA C22.2 #205
- UPC: 784607048886
- Warranty: Lifetime (MagnaCare)
