Securitron, DEM680E Delayed Egress Maglock, Supports HUGS Infant Protection Timings, 1200lbs

DEM680E Delayed Egress Maglock, Supports HUGS Infant Protection Timings, 1200lbs

Delayed Egress EcoMag Magnetic Lock

Product Overview

Highly configurable, strong, easy-to-mount. The latest in delayed egress technology.

Building on the technology of the Securitron EcoMag Series, the DEM680E is a direct replacement for the iMXDA.

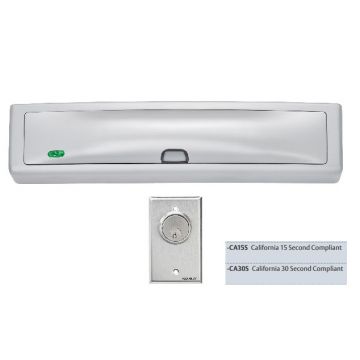

Designed for applications that require a lock that delays the opening of a door, the DEM680E standard model is HUGS-compliant with specific code compliant models also available.

For use on interior and perimeter exit, single, out-swinging doors.

Specification Data

• Holding Force: 1200 lbs. [544 kg] static strength
• Current Draw and Voltage: 520mA max at 12VDC; 360mA max at 24VDC
• Operating Temperature: +32° F to +120° F [0° C to +49° C]
• Indoor use only
• Outswing door use only
• Shipping Weight: 13.1 lbs.

Product Features

• 1200 lbs. holding force Magnalock
• Autosensing dual voltage
• Easily visible LEDs indicate status on secure side of door
• Fully integrated delay and detection features for fast installation or delayed egress system
• DIP switch selectable options:
• Nuisance alarm times - 0,1, 2 or 3 seconds
• Irrevocable delay times - 15 or 30 seconds - user selectable
• Bypass delay times - 0, 15, 30 or 45 seconds
• Required sign included
• UL294 Listed
• MagnaCare® lifetime replacement, no fault warranty

Accessories (included)

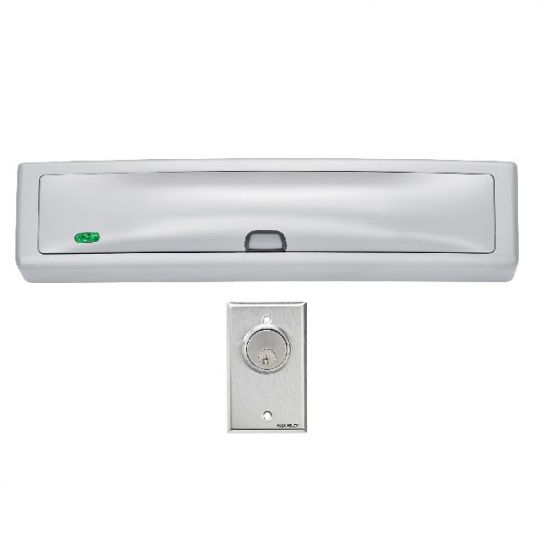

• Securitron mortise key switch and mortise cylinder included in box - supports electronic lock control, alarm panel arming, reset and override.
• Required NFPA exit delay door label sign included

Models

• DEM680E 628 - Delayed Egress Maglock, Supports HUGS Infant Protection Timings, 1200lbs - Satin Aluminum Clear Anodized Finish
• DEM680E 613E - Delayed Egress Maglock, Supports HUGS Infant Protection Timings, 1200lbs - Dark Oxidized Bronze Finish
• DEM680E BSP - Delayed Egress Maglock, Supports HUGS Infant Protection Timings, 1200lbs - Black Suede Powder Coat Finish

Certifications and Listings

• UL 294 Listed
• UL 10C Fire Rated 1 hour
• CAN/ULC S104 Fire Door Conformant
• NFPA 101
