Securitron, DEM680E-CA Delayed Egress Maglock, California Compliant Timings, 1200lbs

DEM680E-CA Delayed Egress Maglock, California Compliant Timings, 1200lbs

Delayed Egress EcoMag Magnetic Lock with California Specific Timing

Product Overview

Highly configurable, strong, easy-to-mount. The latest in delayed egress technology.

Building on the technology of the Securitron EcoMag Series, the DEM680E-CA is a direct replacement for the iMXDA-CA

Designed for applications that require a lock that delays the opening of a door, the DEM680E-CA models are California State Fire Marshal approved, *consult local Fire Marshal to confirm compliance

For use on interior and perimeter exit, single, out-swinging doors.

Specification Data

• Holding Force: 1200 lbs. [544 kg] static strength
• Current Draw and Voltage: 520mA max at 12VDC; 360mA max at 24VDC
• Operating Temperature: +32° F to +120° F [0° C to +49° C]
• Indoor use only
• Outswing door use only
• Shipping Weight: 13.1 lbs.

Product Features

• 1200 lbs. holding force Magnalock
• Autosensing dual voltage
• Easily visible LEDs indicate status on secure side of door
• Fully integrated delay and detection features for fast installation or delayed egress system
• Available in either 15 second or 30 second timing options *consult local Fire Marshal to confirm compliance
• Required sign included
• UL294 Listed
• MagnaCare® lifetime replacement, no fault warranty

Accessories (included)

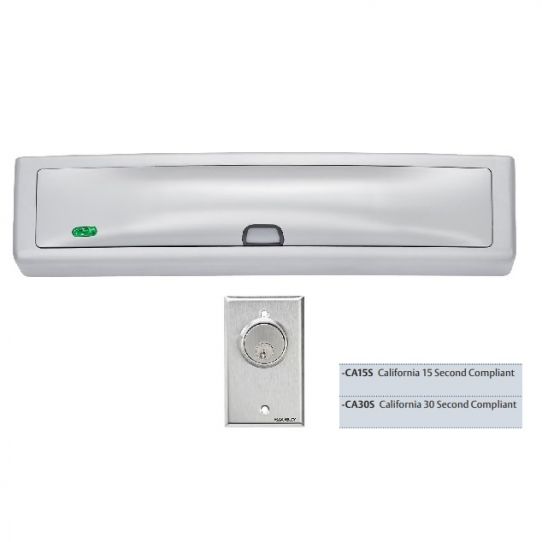

• Securitron mortise key switch and mortise cylinder included in box - supports electronic lock control, alarm panel arming, reset and override.
• Required NFPA exit delay door label sign included

Models

• DEM680E-CA15S 628 - Delayed Egress Maglock, California 15 Second Compliant, 1200lbs - Satin Aluminum Clear Anodized Finish
• DEM680E-CA30S 628 - Delayed Egress Maglock, California 30 Second Compliant, 1200lbs - Satin Aluminum Clear Anodized Finish
• DEM680E-CA15S 613E - Delayed Egress Maglock, California 15 Second Compliant, 1200lbs - Dark Oxidized Bronze Finish
• DEM680E-CA30S 613E - Delayed Egress Maglock, California 30 Second Compliant, 1200lbs - Dark Oxidized Bronze Finish
• DEM680E-CA15S BSP - Delayed Egress Maglock, California 15 Second Compliant, 1200lbs - Black Suede Powder Coat Finish
• DEM680E-CA30S BSP - Delayed Egress Maglock, California 30 Second Compliant, 1200lbs - Black Suede Powder Coat Finish

Certifications and Listings

• UL 294 Listed
• UL 10C Fire Rated 1 hour
• CAN/ULC S104 Fire Door Conformant
• NFPA 101
• CSFM - California State Fire Marshal approved

Specifications

• Model: DEM680E-CA Delayed Egress Maglock (California compliant timings)
• Manufacturer: Securitron
• Holding Force: 1200 lbs (544 kg) static strength
• Voltage: 12 VDC or 24 VDC (autosensing)
• Current Draw: 520 mA maximum at 12 VDC; 360 mA maximum at 24 VDC
• Operating Temperature: +32° F to +120° F (0° C to +49° C)
• Use: Indoor use only; single outswinging doors only
• Mount: Bracket mounted
• Delay Timing: 15 second (CA15S) or 30 second (CA30S) models
• Finish Options: Satin aluminum clear anodized (628); dark oxidized bronze (613E); black suede powder coat (BSP)
• Included: Mortise key switch and mortise cylinder; required NFPA exit delay door label sign
• Shipping Weight: 13.1 lbs
• Listing: UL 294 Listed; UL 10C fire rated 1 hour; CAN/ULC S104; NFPA 101; California State Fire Marshal approved
• Warranty: MagnaCare Lifetime Replacement, no-fault warranty
