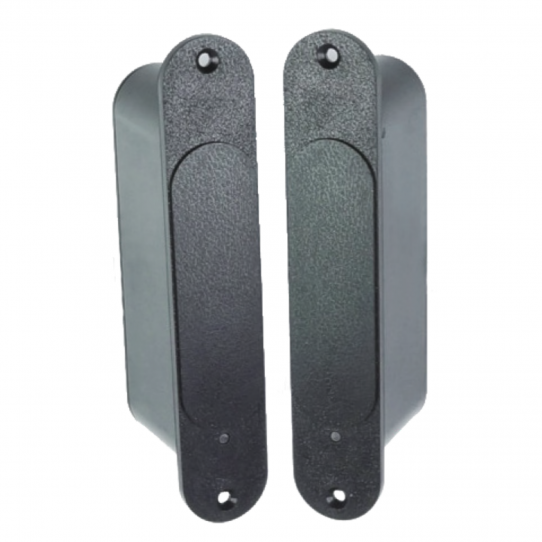

SDC, WPT Wireless Power Transfer Device

Product Overview

The WPT uses a radio frequency (RF) transmitter to send energy wirelessly across the door gap to a RF receiver that converts the energy to DC voltage to power electrified locks and latches.

Retrofitting electrified locks into openings with existing wood doors is simpler and less time consuming and core drilling the door is not required. Works well with steel doors, too.

Features

• Transfer of latchbolt monitoring, REX or data signals
• No more broken wires, no moving parts
• Dual Voltage Output 12VDC or 24VDC field selectable

Specifications

• Input Power (frame side): 600mA @24VDC
• Output Power (door side): 600mA/300mA @ 12/24VDC (field selectable)
• Maximum Door Gap: 1/4 inch (-7mm)
• Operating Temperature: -4° F to 140° F(-20° C to 60° C)
• UL 1034 and UL 10C 3-hrs fire-rated, FCC Part 15 Compliant

Model

• WPT - Wireless Power Transfer Device
