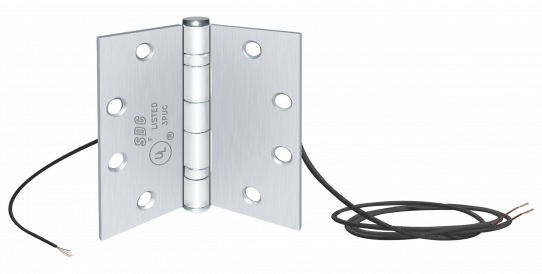

SDC PTH-4Q Power Transfer Hinge

$127.50 $150.00

Overview

Electric Power transfer hinges provide a concealed and vandal resistant method for running wires from the frame to doors equipped with electric locks and exit devices. Installed in the center hinge position of the door, PTH Power Transfer Hinges provide the concealed wires required between the door and the frame, for the purpose of powering and monitoring electric door hardware.

More Info +


Select Model:
Special Order Finish [626 Finish Standard - All other finishes are Special order, no cancellation, no returns]:

Qty

Product Details

Product Overview

Electric Power transfer hinges provide a concealed and vandal resistant method for running wires from the frame to doors equipped with electric locks and exit devices.

Features

• UL 10B Listed for 3Hr fire rated doors. Look for the ‘F’ mark located next to the UL symbol that confirms the PTH series hinge UL fire rating.
• Wire replacement warranty

Applications

  • Installed in the center hinge position of the door, PTH Power Transfer Hinges provide the concealed wires required between the door and the frame, for the purpose of powering and monitoring electric door hardware.
    • Electric Lock Power and Control
    • Door and Lock Status Signaling
    • Request-to-Exit Signaling
  • Compatible With:
    • Electrified Mortise Locks
    • Electrified Cylindrical Locks
    • Delayed Egress Exit Devices
    • Electric Trim
    • Electric Strikes in Pair of Doors
  • Specifications

    Four (4) Conductor Power Transfer Hinge
    1 Amp @ 12/24V per pair
    4-1/2" x 4-1/2" standard weight

    Finish

  • Q 626 Dull Chrome (Standard)
  • C 605 Bright Brass
  • H 613 Oil Rubbed Bronze
  • P 625 Bright Chrome
  • Options

    PTH4Q
    PTH4QDPS with door position switch
    DPS Concealed Door Position Switch SPDT, 250mA @ 30VDC
    Consult factory for 3 knuckle, and special size

    Maglocks.com Rating
    Best
    Manufacturer
    SDC Security
    Manufacturer Warranty
    2 Year
    Model Number
    PTH-4
    Power Requirements
    24V/12V AC/DC
    Status Monitor
    Optional
