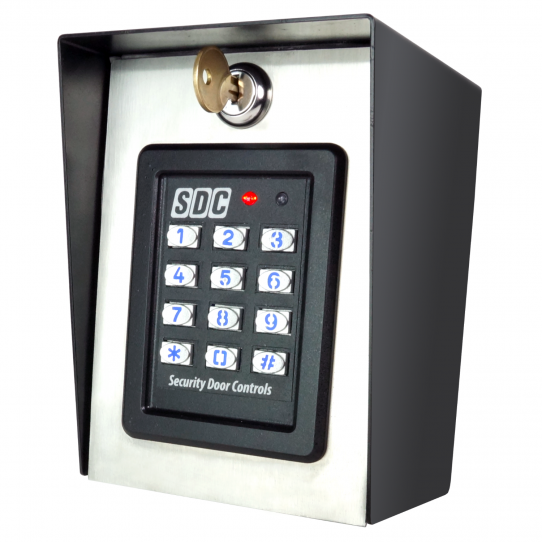

SDC, 926 Outdoor Digital Keypad, 500 users

Product Overview

SDC 926 series outdoor standalone digital keypads with incorporated privacy and weather protected housing are designed to control doors or gates with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid four to six digit code activates one or both of the output relays.

The keypad electronics are secured by an integral key lock and builtin tamper switch.

• 500 Users, 4-6 digit PIN codes
• 4 outputs, 2 relay and 2 solid state outputs timed or latching (on/off)
• Assign entry PIN to relays 1 and/or 2
• LED Status: Access, lockout
• Weather & vandal resistant housing with tactile metal keys
• Timed anti-passback
• Keypad tamper lockout
• Request-to-Exit/Enter input

Specifications

• Voltage 12/24 VAC/DC
• Current 30mA typical, 150mA maximum
• Outputs Relay 1 - SPDT 5amp @ 30VDC Relay 2 - SPDT 2amp @ 30VDC
• Switch to Common Outputs 3amp; 4 to 100mA @ 30VDC
• Operating Temperature: -4° F to +140° F (-20° C to +60° C)
• Dimensions: 4-3/4 inch W x 6-3/8 inch H x 4-1/2 inch D

Finish Options

• Weather & vandal resistant steel housing with tactile metal keys

Programming Options

SDC's EntryCheck™ keypads includes a Door Sense/Inhibit Input feature. When programmed for "Door Sense", a door position switch wired into the input and detects a "forced entry" or "door ajar" condition. When programmed for "Inhibit Input", a maintained switch or automatic timer wired into a the input will disable the activation of the main relay. The EntryCheckTM also has a request-to-exit input for connection to an exit switch and/or fire access key switch for fire/emergency access. When access is granted, the shunt option is activated shunting alarm contacts on the door or gate. This prevents triggering of an alarm during authorized access.
