SDC 923PW Narrow Keypad, HID Prox Reader, Wiegand Output

Product Overview

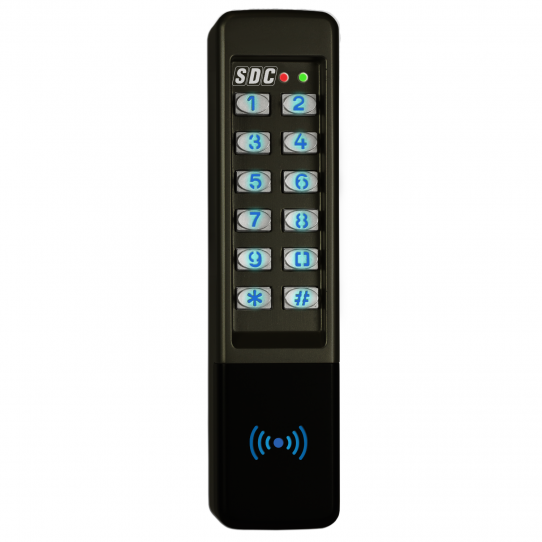

The SDC 923PW narrow mount PIN/Proximity reader is perfect for mounting on narrow door frames.

Features:

• Digital Keypad with Wiegand Output for Universal Compatibility
• Weather and Vandal-Resistant Housing with Tactile Metal Keys
• HID-Compatible Proximity Reader
• 12-Key Illuminated Keypad
• Surface or Single-Gang Mount
• Built-In Tamper Switch
• Programmable Site Code
• Dual LED Status Indicators
• Adjustable Audible Annunciation
• Configurable Illumination: On, Off, Timed

Specifications

• Voltage: 5-16 VDC
• Current: 30mA typical, 150mA maximum
• Reader Output: 26-bit Wiegand
• Reader Frequency: 125kHz
• Keypad Output: 26-bit Wiegand or 4-bit Word
• Temperature: -22° F to + 149° F (-30° C to + 65° C)
• Humidity: 5% to 95% non-condensing
• Finish: Black Powder Coat Painted

The 923PW does not have any built in relays and must be connected to an access control panel like the IP pro computerized door controller.
