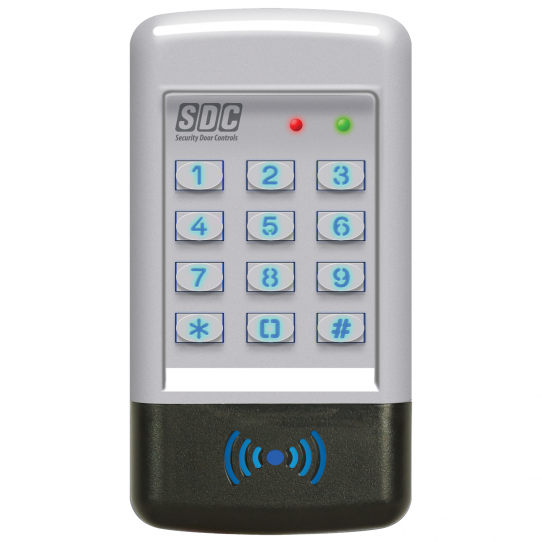

SDC 920PW Digital Keypad & HID Prox Reader, Wiegand Output

Product Overview

The SDC 920PW is a surface mount PIN/Proximity reader perfect for indoor or outdoor usage.

Specifications

• Users: 500, with 4 to 6 digit PIN codes
• Output format: Wiegand
• Outputs: 4 (2 relay-type, 2 solid state), timed or latching (on/off)
• Housing: heavy cast, vandal resistant; heavy cast metal blue backlit keys
• Rating: weather resistant (indoor or outdoor)
• Mounting: surface mount
• Programming: from the keypad

Features

• Weather Resistant
• Heavy Cast Vandal Resistant Housing
• Heavy Cast Metal Blue Backlit Keys
• Keypad programmable
• 500 Users, 4-6 digit PIN codes
• 4 outputs (2 relay-type, 2 solid state), timed or latching (on/off)
• Assign entry PIN to relays 1 and/or 2
• LED Status: Access, lockout
• Tactile keys with loudness selectable audible volume for key depression or output activation
• Timed anti-passback, anti-tailgate
• Keypad tamper lockout
• Request-to-Exit/Enter input
• Choice of door sense/relay inhibit input functions
• Forced entry
• Door ajar
• Inhibit relay 1 or 2
• Auto relock when door closes
• Choice of 2 solid states outputs functions
• Alarm shunt
• Door ajar
• Tamper lockout
• Keypad active

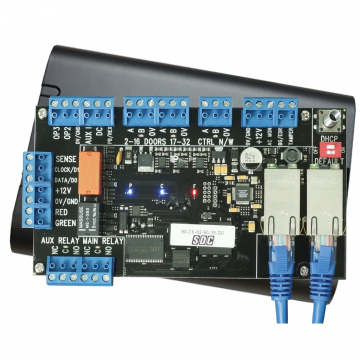

The 920PW does not have any built in relays and must be connected to an access control panel like the IP pro computerized door controller.
