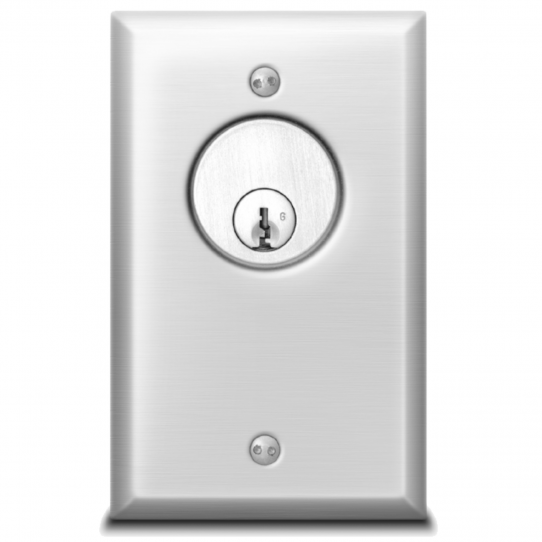

SDC 700 Series Single Gang Stainless Steel Key Switch
Processing...

30% Off MSRP

SDC 700 Series Single Gang Stainless Steel Key Switch

$81.90 $117.00

Overview

Single gang wall mount key switches feature a 20 gauge stainless steel faceplate with key cylinder recess and security spanner screws for tamper resistance.

More Info +


Select Model:
Specify Finish (U - 630 Stainless Standard, all other special order 4-weeks):
Key Cylinder:
Optional Indicator Lights:
Options

Qty

Product Details

SDC Security Door Controls 700 Series Gang Mount Key Switch

Product Overview

Single gang wall mount key switches feature a 20 gauge stainless steel faceplate with key cylinder recess and security spanner screws for tamper resistance.

Models

  • 701U SDC Key Switch AA (on-off) SPDT, 6amp.
  • 702U SDC Key Switch Momentary SPDT 6amp.
  • 705U SDC Key Switch AA (on-off) DPDT 6amp.
  • 706U SDC Key Switch Momentary DPDT 6amp.
  • 707U SDC Key Switch (L) Momentary SPDT, (R) Momentary SPDT 6amp.
  • 708U SDC Key Switch (L) Momentary SPDT, (R) AA (on-off) SPDT 6amp.
  • 709U SDC Key Switch (L) AA (on-off) SPDT, (R) AA (on-off) SPDT 6amp.
  • 711U SDC Key Switch (2)Momentary SPDT 6amp.
  • 712U SDC Key Switch (L) Momentary DPDT, (R) AA (on-off) DPDT 6amp.
  • 713U SDC Key Switch (L) AA (on-off) DPDT, (R) AA (on-off) DPDT, 6amp.

Specifications

  • Vandal resistant cylinder recess
  • 20-gauge stainless steel faceplate
  • Security spanner screws
  • 7 inch Wire Leads
  • Compatible with 1-1/8 inch and 1-1/4 inch standard and interchangeable core mortise key cylinders (Sold Separately).
  • Large actuator assembly for positive and consistent circuit activation.

Options

  • Anit-Tamper switch
  • Green and Red LED Status Indicators
  • Buzzer May be wired to sound when door is unlocked
  • Key cylinder with two keys

Special finishes

  • U-630 Dull Stainless Steel (standard)
  • S-629 Bright Stainless Steel
  • C-605 Bright Brass
  • P-625 Bright Chrome
  • D-606 Dull Brass
  • H-613 Oil Rubbed Bronze
  • Q-626 Dull Chrome
Also Known As
SZ-701U, SDC-701U
Manufacturer
SDC Security
Manufacturer Warranty
2 Year
Model Number
700 Series
Mount
Single Gang
Power Requirements
24VDC/12VDC
Switch Type
S.P.D.T. (Single Pole Double Throw),D.P.D.T. (Double Pole Double Throw),Momentary Action,Alternate Action,Electronic Time Delay
Type
Basic
UPC Code
712905168098
