SDC 430 Series Narrow Mount Mushroom Exit Button

$94.50 $135.00

Overview

These heavy-duty industrial series switches incorporates a 1.5 inch round mushroom with heavy-duty water resistant contacts and are ideal for high frequency use.

More Info +


Select Model:
Select Finish (U - 630 STAINLESS STANDARD, ALL OTHER SPECIAL ORDER 4-WEEKS):
Button Color:
Optional Indicator Lights:

Qty

Product Details

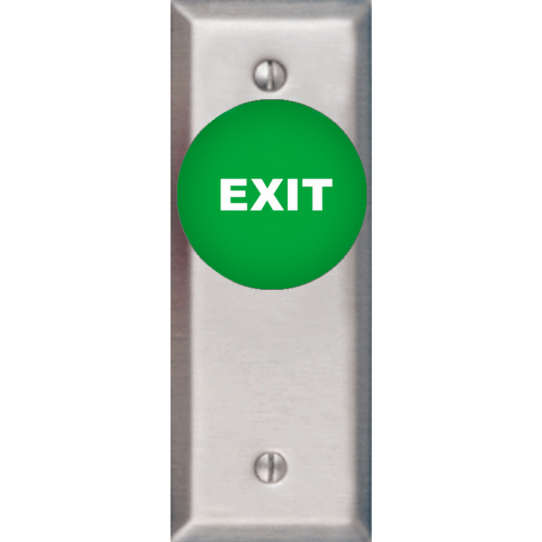

SDC Security Door Controls 430 Series Narrow Mount 1.5 inch Mushroom Button

Product Overview

These heavy-duty industrial series switches incorporates a 1.5 inch round mushroom with heavy-duty water resistant contacts and are ideal for high frequency use.

Models

  • 431CNU Alternate Action, SPST - N.C.
  • 431ONU Alternate Action, SPST - N.O.
  • 432CNU Momentary, SPST- N.C.
  • 432ONU Momentary, SPST- N.O.
  • 434NU Momentary, DPST
  • 435NU Alternate Action, DPST

Specifications

  • Choice of red or green mushroom
  • 20-gauge stainless steel faceplate
  • 1.5 inch mushroom button
  • Contact: 6amp @ 30VDC
  • Screw terminal wire connection

Options

  • Red or Green Button
  • Green and Red LED Status Indicators
  • Special finishes, Chrome, Brass, Bronze, Dark Bronze
Also Known As
Z-431CNU, SDC-431CNU
Manufacturer
SDC Security
Manufacturer Warranty
2 Year
Model Number
430 Series Narrow
Mount
Narrow
Operation Momentary Timer Maintained
Momentary,Built-in Timer,Alternate Action
Power Requirements
24VDC/12VDC
Type
Mushroom
UPC Code
712905164342
