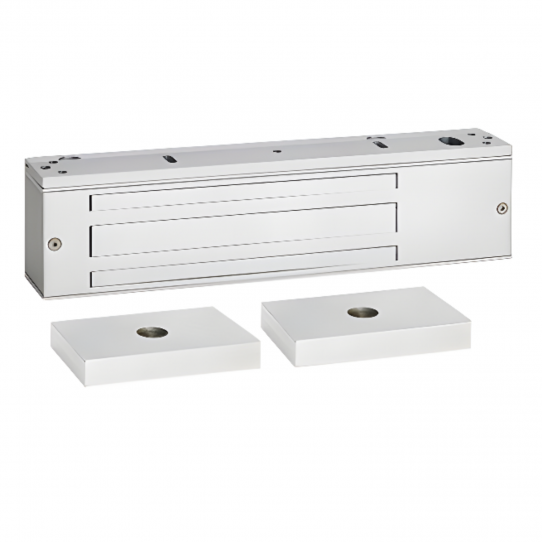

SDC 1513 EMLock, Split Armature, UL Listed, 1650lb

$403.75 $475.00

Overview

SDC 1500 series EMLocks® include a lifetime warranty and are available in 650lbs, 1200lbs, and 1650lbs holding force. Compatible with any access control system, all EmLocks® are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. EMLocks® are UL Listed and ANSI Grade 1 compliant.

More Info +


Special Order Finish [628 Finish Standard - All other finishes are Special order, no cancellation, no returns]:
Options

Qty

Product Details

SDC 1513 EMLock, Split Armature, UL Listed, 1650lb

SDC’s patented EMLock® design represents the pinnacle of magnetic lock evolution. The modular EMLock® assembly makes them easy to stock, install, upgrade and maintain.

EmLock EZ Upgrade Kits

Field upgradeable by distributors, installers and maintenance staff. No need to ever remove a lock from the frame to upgrade or exchange internal components.

Upgrade Modules Include:

  • Relock Delay Timer
  • Magnetic Bond Sensor
  • Door Status Sensors
  • Anti-Tamper Switch
  • Holding Force Upgrade
  • Energy Saver Upgrade

Model

  • 1513V (standard) Single EmLock with Split Armature for pair of doors - 1,650 lbs, V - aluminum finish

Specifications

  • Input Voltage: Dual voltage Sensing 12/24 VDC
    • 350mA @ 24VDC
    • 670mA @ 12VDC
  • Size: 11 inches L x 2.75 inches H x 1-9/16 inches D (279.4 x 69.9 x 39.7 mm)

Options

  • T - Adjustable Timer: Built-in field adj. 0-30 sec. re-lock delay.
  • L - Bi-color Status LED Indicator: Field selectable Red, Green, or Amber (requires additional wiring)
    • Indicates lock energized when wired to lock input.
    • Indicates de-energized/unlocked or “Enter/Go” when wired to optional timer module.
    • Indicates energized and de-energized or “Enter/Go” when wired to access control auxiliary output.
    • Indicates door is closed and locked and door is unlocked when wired to BA.
  • A - Anti-tamper Sensor: Indicates access cover removal. SPDT Dry, 1Amp @ 30VDC.
Finish
Aluminum
Maglocks.com Rating
Best
Manufacturer
SDC Security
Manufacturer Warranty
Lifetime
Model Number
1513
Power Requirements
24VDC/12VDC
Status Monitor
Optional
