Rosslare Security, EX-06OO Weatherized Exit Button UL Listed - No Labels

Rosslare Security EX06OO Analog Piezo REX Switch with Toggle Option

Rosslare Security, EX-06OO Weatherized Exit Button UL Listed - No Labels

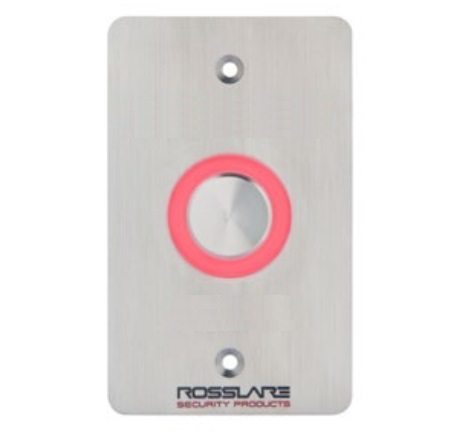

Rosslare EX-06 is a heavy duty, non-sparking, non-magnetic, corrosion resistant, illuminated, anti-vandal, timed analog switch, designed for both indoor and outdoor use. It features solid state Piezoelectric Switch Technology generating a dry contact N.O. and N.C relay pulse simply by the touch of a finger, with no physical movement or moving parts. Select brilliant red, vibrant green or no illumination as a status indicator with the jumper selectable illumination status feature.

The EX-06 mounts directly to a standard US size gang switchbox and is crafted to the highest manufacturing standards out of the finest materials under Rosslare ISO 9001:2008 Certified Quality standards.

Main Features

• Advanced Soft Touch Piezoelectric Switch
• New weatherproof design water and dust proof, grease, oil and other chemical solvent repellent
• Circuit assembly encapsulation
• Vandal resistant, stainless steel mounting plate and tactile button with no moving parts
• Mounting Method Single Gang: Mounts directly to a US gang switchbox
• Backed by Rosslare International Guarantee and service with ISO9001 (Certified TUV Rhineland) level business and manufacturing operations
• Non-sparking, non-magnetic, corrosion resistant
• Light ring status indicator and accidental activation hindrance
• Adjustable output and LED indication time of 1 to 60 seconds
• Output and indication Toggle option
• Jumper Selectable Illumination Status: Red, Green, or No Illumination
• One Relay with two 2.0 Amp outputs for separate application wiring: N.O. and N.C.

Professional Grade Features

• Non-sparking, non-magnetic, corrosion resistant
• Light ring status indicator and accidental activation hindrance
• Adjustable output and LED indication time of 1 to 60 seconds
• Output and indication Toggle option
• Jumper Selectable Illumination Status: Red, Green, or No Illumination
• One Relay with two 2-Amp outputs for separate application wiring: N.O. and N.C.

Applications

• Mines
• Hospitals
• Gates
• Oil Rigs, Refineries
• Military
• Heavy Machinery
• Mechanical Operation Panels
• Electronic Access Control Systems

Specifications

• Switch Type: Piezoelectric, solid state, no moving parts; timed analog switch
• Operating Voltage: 10 to 24 VDC
• Current: 15 mA standby; 140 mA maximum (at 24 VDC)
• Relay: One relay with separate N.O. and N.C. outputs, 2 A each
• Output and LED Time: Adjustable, 1 to 60 seconds; toggle option
• Illumination: Red, green or none (jumper selectable)
• Mounting: Single gang, mounts directly to a US gang switchbox; optional MP-06 surface mount metal backbox (sold separately)
• Operating Temperature: -35°C to 66°C (-31°F to 151°F)
• Humidity: 0 to 85%, non-condensing
• Ingress Protection: IP65; indoor and outdoor
• Dimensions: 4.5 x 2.75 x 1.25 inches (11.4 x 7 x 3.2 cm)
• Weight: 8.395 oz (238 g)
• Material: Stainless steel plate and button
• Listing: UL 294 (certificate 20130801-BP9264)
• Warranty: 5-year limited
