RCI, DKPS-2A Power Supply, 12/24VDC Output 2amp

$351.20 $439.00

Overview

The dormakaba DKPS Series power supply is designed to convert 120-240 VAC, 50 or 60Hz into a continuous 2 Amp supply at 12 or 24VDC power outputs.

More Info +


Qty

Product Details

Product Overview

The dormakaba DKPS Series power supply is designed to convert 120-240 VAC, 50 or 60Hz into a continuous 2 Amp supply at 12 or 24VDC power outputs.

Features

  • Selectable 12 or 24VDC output
  • 4 voltage outputs, each output max 2.0 A with electronic over-current protection set at 2 Amp
  • Status LEDs on enclosure front door (Green, Yellow, Blue)
  • FPDB (Fire Panel Disconnect Board) now a standard feature

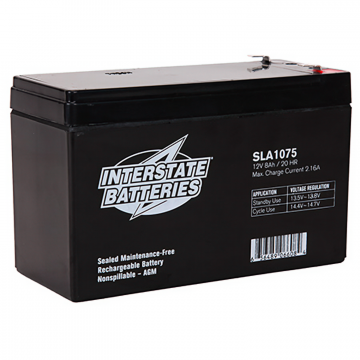

  • Enclosure supports two (2) 12VDC-7 amp-hour (AH) batteries (*batteries sold separately)

Model

  • DKPS-2A: Low Voltage Power Supply with Enclosure, 12/24VDC Output 2amp

Specification

  • Input: 120-240 VAC, 50 or 60Hz
  • Output: 12 or 24VDC, 2amp
  • UL294 6th Edition Listed for access control power supply
  • CAN/ULC-60839-11-1; CAN/ULC-S533
  • FCC Compliant; ISED(IC) compliant
  • CE compliance EMC Directive 2014/30/EU

Dimensions

  • Metal Enclosure: 13 5/16 inches x 17 5/8 inches x 4 5/16 inches (338mm x 448mm x 110mm)
Also Known As
DKPS2A, RUTHERFORD-DKPS-2A, RUTDKPS2A
For Use With
Electromagnetic locks, electric strikes & power bolts. Specialty Electric locks. Motorized Latch Retraction (MLR). Egress doors and exit devices
Manufacturer
RCI
Model Number
DKPS-2A
Mount
Surface Mount Enclosure
UPC Code
785943401625
