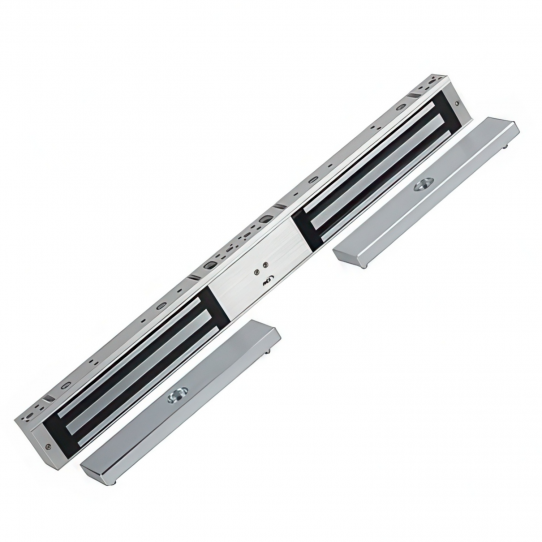

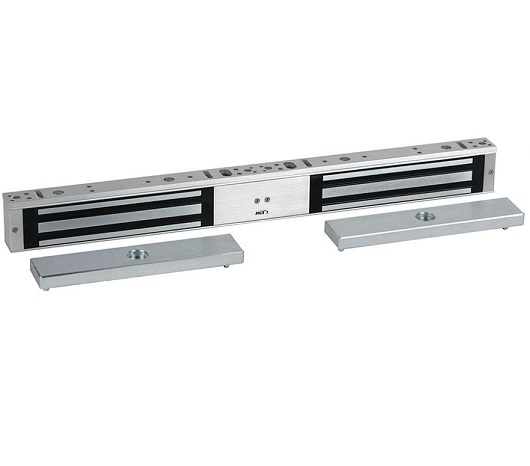

RCI 8372 Double Surface MiniMags, 750lbs Holding Force per side

$751.20 ~~$939.00~~

Overview

Our low-profile MiniMags® have been extremely popular for interior traffic control. These short electromagnetic locks install perfectly alongside most automatic door operators or stop-mounted door hardware, reducing installation time and eliminating the need for extra brackets.

The MiniMags® design of 1-7/8 inch width helps keep undersized openings within code. This is the ideal magnet for use on narrow-style aluminum doors!

Applications:

• Pairs of Outswinging Doors without mullion
• Pairs of Inswinging Doors without mullion (use Z brackets)

Select Model:

Inswing Mounting Brackets: Top Jam Bracket Kit in US28 Aluminum Finish TJ72 28 + $387.00 Top Jam Bracket Kit in US40 Dark Bronze Finish TJ72 40 + $387.00

Qty

Our low-profile MiniMags have been extremely popular for interior traffic control. These short electromagnetic locks install perfectly alongside most automatic door operators or stop-mounted door hardware, reducing installation time and eliminating the need for extra brackets.

STANDARD FEATURES

750lbs max holding force (per magnet)
Field selectable voltage - 12/24VDC
MOV surge protection
No residual magnetism
Low energy consumption
Hardened steel armature nut
UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour
CAN/ULC S104 Auxiliary Locks Listed for fire doors rated up to 1-hour
California State Fire Marshal Listed (CSFM: 3774-2127:0100)
UL 294 Special Locking Arrangement Component (6th Edition

PLUS! Standard MultiMag features included

Adjustable keyhole mounting
Convenient plug-in wiring terminals
Easy access wiring cavity
Encapsulated 4-bolt 'Drop-Stop" mounting
Self-drilling tek™ fasteners

OPTIONS

DSS - Door Status Sensor (Retrofit Kits Available)
SCS - Security Condition Sensor with LED
DSS/SCS - Door Status Sensor/Security Condition Sensor Combination with LED

Accsessories Sheet- (Items listed are available by special request please call 866-500-5625 or use our email contact form)

Models

8372-28 (Standard unit, US28 Satin Aluminum Finish)
8372-40 (Standard unit, US40 Dark Bronze Finish)
8372-2DSS-28 ( Door Status Switch, US28 Satin Aluminum)
8372-2DSS-40 ( Door Status Switch, US40 Dark Bronze Finish)
8372-2SCS-28 (Bond Status, US28 Satin Aluminum Finish)
8372-2SCS-40 (Bond Status, US40 Dark Bronze Finish)
8372-2DSS/SCS-28 (Door Status Switch, Bond Status, US28 Satin Aluminum Finish)
8372-2DSS/SCS-40 (Door Status Switch, Bond Status, US40 Dark Bronze Finish)

Applications

Pairs of Outswinging Doors without mullion
Pairs of Inswinging Doors without mullion (use Z brackets)

Warranty

Lifetime Warranty

Also Known As

RUT100837228, RUTHERFORD-8372-28

Finish

(selectable)

Manufacturer

RCI

Manufacturer Warranty

Lifetime

Model Number

8372

Power Requirements

24VDC/12VDC

Status Monitor

Optional

UPC Code

785943360908

CAD PDF

RCI 8371 Functional Descriptions

1 Question asked on RCI 8372 Double Surface MiniMags, 750lbs Holding Force per side • Ask a Question

Q john woodward • 08/09/2023, 12:48:09 PM Can I get replacement circuit boards for the RCI 8372

A 08/10/2023, 5:50:39 PM Unfortunately the manufacture does not offer replacement circuit boards for this lock. In the case of a failure a complete new 8372 lock would have to be purchased.
