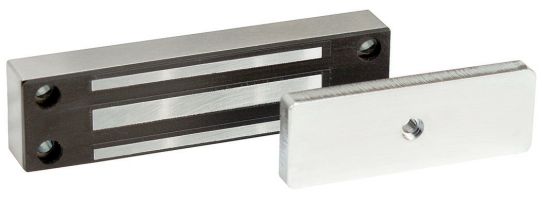

MCL Magnetic Cabinet Lock by Securitron, 200lbs

$198.40 $248.00

Overview

Typical applications include: jewelry cases, museum cases, gun cabinets, pharmaceutical storage cabinets, cash drawers and any type of door or drawer which will physically accommodate the lock. Works in both swinging and sliding cabinet door applications.

Product Features

  • Surface mounts easily with a minimum of tools
  • Fully sealed electronics - tamper proof and weatherproof
  • Mounted using steel machine screws
  • Architectural brushed stainless steel finish (US32D/630)
  • All ferrous metal surfaces plated to MIL specification
  • Six feet [1.8m] of jacketed, stranded conductor
  • Includes universal mounting bracket
  • MagnaCare® lifetime replacement, no fault warranty

More Info +


Qty

Product Details

MCL Magnetic Cabinet Lock, 200lbs, 24VDC

Typical applications include: jewelry cases, museum cases, gun cabinets, pharmaceutical storage cabinets, cash drawers and any type of door or drawer which will physically accommodate the lock. Works in both swinging and sliding cabinet door applications.

Product Features

  • Surface mounts easily with a minimum of tools
  • Fully sealed electronics - tamper proof and weatherproof
  • Mounted using steel machine screws
  • Architectural brushed stainless steel finish (US32D/630)
  • All ferrous metal surfaces plated to MIL specification
  • Six feet [1.8m] of jacketed, stranded conductor
  • Includes universal mounting bracket
  • MagnaCare® lifetime replacement, no fault warranty

Specification Data

  • Holding Force: 170 lbs. [77 kg]
  • Current Draw and Voltage: 84mA at 24VDC only
  • Operating Temperature: -40 to +140F [-40 to +60C]
  • Shipping Weight: 1.5 lbs.

Models

  • MCL-24 Magnetic Cabinet Lock - 24 Volts

Warranty

Also Known As
SEC100MCL24, MCL24, SN-MCL24, HES-MCL24
Finish
Stainless Steel
Manufacturer
Securitron
Manufacturer Warranty
Lifetime
Model Number
MCL-24
Power Requirements
24VDC
Status Monitor
Not Available
UPC Code
784607029304
1 Question asked on MCL Magnetic Cabinet Lock by Securitron, 200lbs



Q Robert Lee • 02/12/2021, 8:23:14 PM Can we power this MCL-24 w/ a battery instead of wall power?
A 02/15/2021, 11:24:19 AM The MCL-24 will require constant 24VDC input power to remain locked. While it is technically possible to power this off of a 24VDC battery bank, it is generally not recommended due to the constant power draw requirement. Please give us a call at 1-866-500-5625 and we would be happy to discus this product in further detail.
