KP-400 Vandal Resist, Weather Self-Contained Digital Keypad
Processing...

KP-400 Vandal Resist, Weather Self-Contained Digital Keypad

$201.45 $237.00

Overview

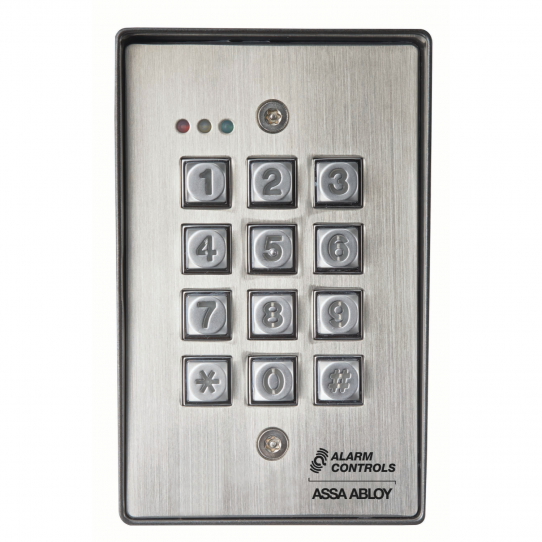

Model KP-400 is a self-contained vandal resistant digital keypad.

This dual-relay output keypad is suitable for residential, industrial, and commercial installations. It is compatible with all electric locking devices. Durable backlit metal keys and a rugged metal housing protect the keypad from harsh environments.

More Info +


Qty

Product Details


Specifications

  • Vandal resistant and weather-proof
  • Conforms to IP66 code, dust-proof and water-proof from powerful direct water spray in any direction
  • Operates on 12 or 25VAC or VDC, auto sensing
  • Fully programmable from the keypad
  • 302 stainless steel faceplate with tamper-proof screws
  • Output 1: capacity of 100 user codes, code length 4 to 8 digits
  • Output 2: 100 user codes, code length 4 to 8 digits
  • Black powder coated die cast aluminum back box
  • Keys are backlit for visibility in dark areas
  • Two programmable S.P.D.T. relays
  • Die cast metal keys with audible and visual key press
  • Built-in tamper switch, built-in buzzer
  • Request to exit input
  • Anti-tailgating feature
  • Duress output and door prop open alarm
  • Man trap option
  • Red, yellow and green LEDS indicated status of keypad
  • Dimensions: 3.125”W x 4.5”L x 1.75” to 2.5”D
Maglocks.com Rating
Good
Manufacturer
Alarm Controls
Manufacturer Warranty
3 Year
Model Number
KP-400
Operation Keypad
PIN Only
Power Requirements
24VDC/12VDC
