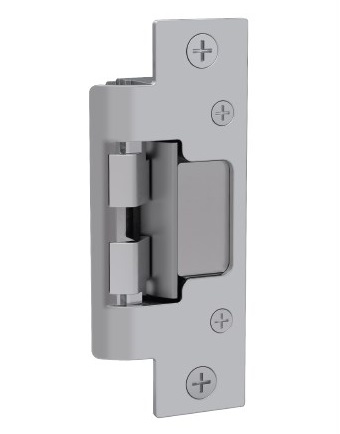

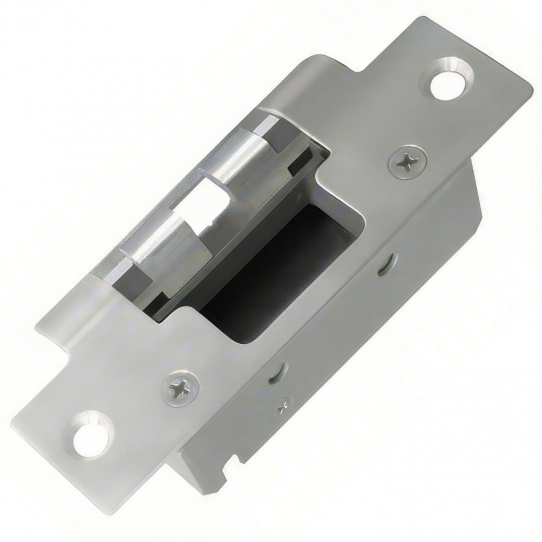

HES 8300 Series Strike 630 Dull Stainless Fire-Rated Grade 1

Fire-rated, concealed electric strike, cylindrical lockset

Introducing the fire-rated, concealed 8300 series, a compact, high-performance product for use with cylindrical locksets. Designed for fast, easy installation, the 8300 fits into a standard 1 inch ANSI/BHMA A156.115 dustbox, with little or no modification to the frame, and offers vertical adjustability to accommodate door sag and misalignment. Best of all, this unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames, so you can save money, save time, and save lives!

Specifications

• UL 10C, fire-rated, 3 hour (fail secure only)
• CAN4-S104 (ULC-S104) fire door conformant
• NFPA 80-07 compliant
• UL 1034, burglary-resistant listed
• ANSI/BHMA A156.31, Grade 1
• NFPA-252 fire door conformant
• ASTM-E152 fire door conformant
• UBC-7-2-94, Uniform Building Code
• Patent #5,934,720; 8,146,966; 8,157,302

Frame application

• Metal
• Wood

Electrical

• .24amps @ 12VDC/VAC
• .12amps @ 24VDC/VAC
• DC continuous duty/AC intermittent duty only

Standard Features

• Falls within the guidelines for retrofit into fire-rated frames
• No cutting on frame required
• Vertical adjustability to accommodate door sag and misalignment
• Tamper resistant
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Endurance 500,000 cycles
• Field selectable fail safe/fail secure
• Non-handed
• Accommodates 1/2 inch - 5/8 inch cylindrical latchbolt (5/8 inch with 1/8 inch door gap)
• Strike body depth 1-1/16 inch
• Plug-in connector
• Five year limited warranty

Optional Features

• 8300LBM - Latchbolt monitor
