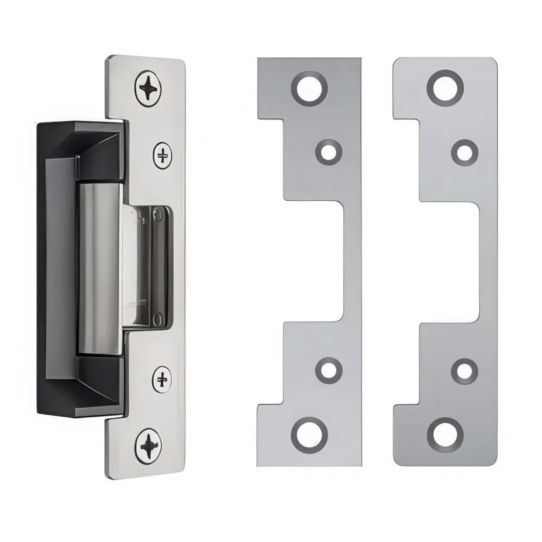

HES, 5300C Electric Strike Pack with Faceplates, Fire Rated

The 5300 Series Electric Strike is a fire-rated compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb.

Its strength is derived from a unique keeper pin locking design, enabling the 5300 to exceed the ratings of the frame, door and locking hardware. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 5/8 inch throw.

Frame application

• Metal
• Aluminum

Includes (2) faceplates

• 501 (4-7/8 inch x 1-1/4 inch, square corners and flat faceplate) For use with cylindrical locksets in ANSI metal jambs.
• ANSI/BHMA Numbers: #E09321, #E09322, #E09323
• 501A (4-7/8 inch x 1-1/4 inch, radius corners and flat faceplate) For use with cylindrical locksets. Includes universal mounting tabs. Aluminum frames.
• ANSI/BHMA Numbers: #E09321, #E09322, #E09323

Electrical

• .24amps at 12 VDC/VAC
• .12amps at 24 VDC/VAC
• DC continuous duty/AC intermittent duty only

Standard Features

• Tamper resistant
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Endurance 1,000,000 cycles
• Field selectable fail secure/ fail safe
• Dual voltage 12 or 24 VDC/VAC
• Non-handed
• Internally mounted solenoid
• Accommodates 1/2 inch - 5/8 inch latchbolt (5/8 inch with 1/8 inch door gap)
• Strike body depth 1-1/16 inch
• Plug-in connector
• Trim enhancer included
• Five year limited warranty

Optional Features

• LBM - Latchbolt monitor

Finishes

• 630 - Satin stainless steel

Certifications and Listings

• ANSI/BHMA A156.31, Grade 1
• CAL FIRE, 3776-1654:0502
• NFPA-252 fire door Compliant
• RoHS Compliant
• UL 1034 Burglary-Resistant Listed and Suitable for Outdoor Use
• UL 10C Fire-Rated, 3 Hour Single Door [Fail Secure Only]
• CAN/ULC-S104 Fire Door Compliant
• UL 294 Listed
