HES 1500C Electric Strike Complete Pac for Latchbolts
$582.50
$728.12
Product Overview
The HES 1500 Series Electric Strike sets a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories.

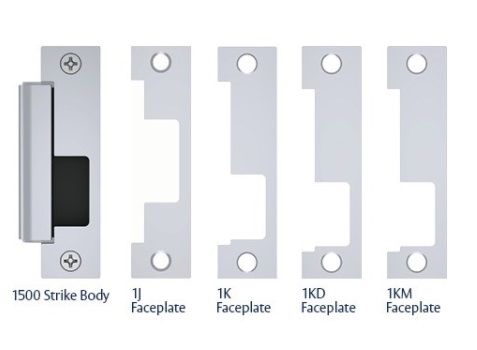

Each 1500C Complete Pac conveniently pairs the reliability of an HES electric strike with the flexibility of multiple faceplates in a single simple package. The 1500C includes a 1500 strike body and 1LB faceplate kit for latchbolts.
Features
- Stainless steel construction
- Tamper resistant
- Fire Rated
- Outdoor Rated
- Static strength 1,500lbs
- Dynamic strength 70 ft-lbs
- Endurance 1 million cycles
- Dual Voltage 12/24 VDC/VAC
- Fail-Secure - Field reversible for failsafe operation
- (Includes 4 faceplates) for Hollow Metal Frames
Model
- 1500C - Electric Strike kit includes. Strike body & (4) faceplates
Specification
- Input: 240/120 mA @ 12/24VDC
- Strike body depth: 1-3/8 inches [34.9mm]
Certifications
- ANSI/BHMA A156.31, Grade 1
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- RoHS compliant
- UL 10C fire rated, 3-hour single door (fail secure only)
- UL 10C fire rated, 1-1/2 hour double door (fail secure only)
- California Fire Marshal listed
Specifications
- Includes: 1500 strike body and (4) faceplates for hollow metal frames
- Current: 240 mA at 12 VDC; 120 mA at 24 VDC
- Voltage: 12/24 VDC/VAC
- Fail Mode: Fail secure, field reversible to fail safe
- Strength: Static 1,500 lbs; dynamic 70 ft-lbs
- Cycle Life: 1 million cycles
- Strike Body Depth: 1-3/8 inch (34.9 mm)
- Use With: Cylindrical and mortise locksets without a deadbolt; hollow metal frames
- Construction: Stainless steel; tamper resistant; fire rated; outdoor rated
- Duty Rating: Continuous (DC) / intermittent (AC)
- Grade: Grade 1
- Listings: ANSI/BHMA A156.31 Grade 1; UL 1034 (outdoor); UL 294; UL 10C (3 hour single door, 1-1/2 hour double door, fail secure only); California Fire Marshal; RoHS
- Warranty: 10 year
