GM Single Door Magnetic Lock Kit

GM Single Door Magnetic Lock Kit



Single Door Magnetic Lock Kit with battery backup for use with Gym Master access control equipment

For situations where modification to the door locking hardware or jamb is not permitted CM600 magnetic lock 600lb lock or CM1200 magnetic lock 1200lb lock offers great flexibility.

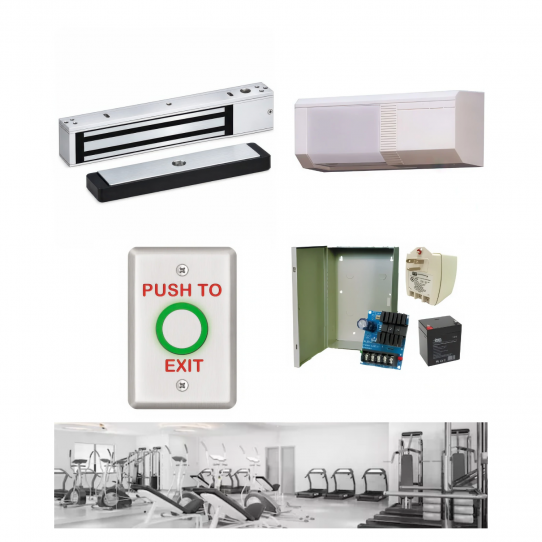

Kit Includes:

  • (1) 600lb or 1200lb Maglock (select below)
  • (1) TS-2 Illuminated "Push to Exit" button
  • (1) DS161 Request to exit motion sensor
  • (1) MC-1 Power Supply with battery backup

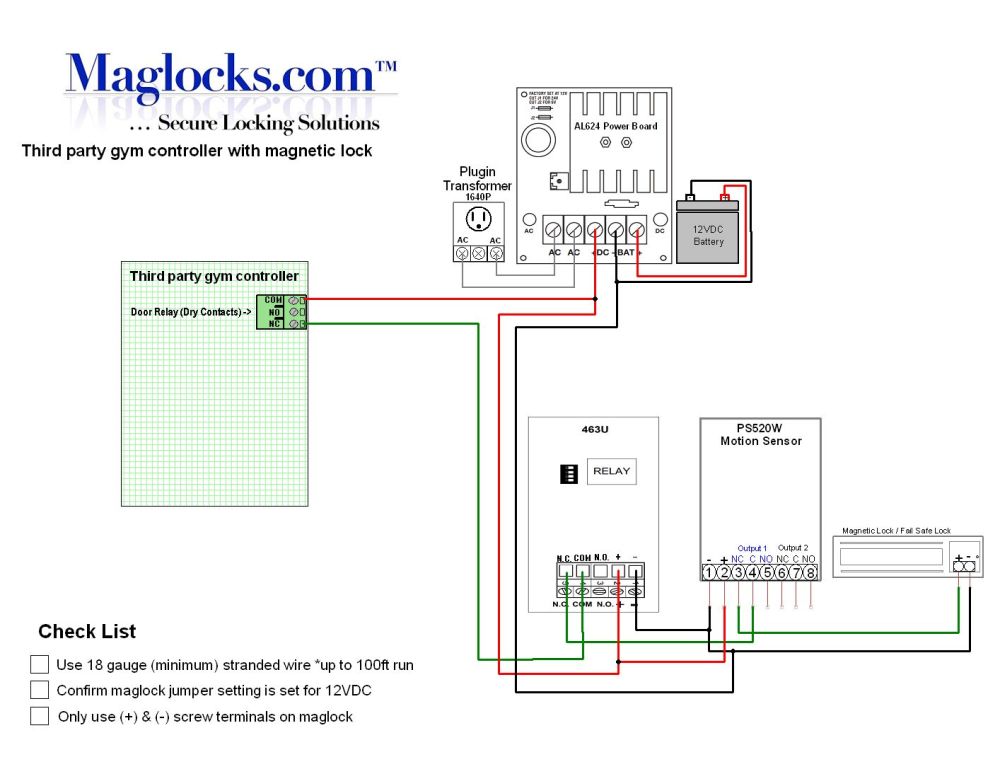

  • Complete Wiring Diagram
  • 100% Free Tech Support.

We recommend checking with your local Fire Marshal/Authorities to verify exit devices are up to your locale's code.

If you have any questions regarding which kit will be best for your project please contact us Toll Free at 1-866-500-5625

More Info +

Select Locking Device:
Wire (select a length):


Product Details

Product Overview

Single door magnetic lock kit complete with magnetic lock of your choice, motion sensor, exit button and power supply. When connected to the Gym Master software the magnetic lock will keep your doors secure while the included exit devices (motion sensor and push button) always allow for safe egress.

Entry through the door is easily programmed using the Gym Master software and equipment. An extra remote release button can also be added above to quickly let visitors in who may not be enrolled in the Gym Master software.

Single Door Magnetic Lock Kit

Combined with our custom 1.2amp linear output power supply with battery backup this kit is easy to install on most doors and requires no permanent changes to the current door locks. If you have any questions regarding this kit please contact us at 1-866-500-5625


  • Power Supply Specifications: 1.2amp at 12VDC
  • Battery Backup: 5amp/hr
Also Known As
Manufacturer Warranty
2 Year
Model Number
GM Single Maglock kit
Power Requirements
1 Question asked on GM Single Door Magnetic Lock Kit

Q Chris • 05/28/2024, 11:02:57 AM Can i access the lock and allow entry through my mobile phone?
A 05/29/2024, 3:48:37 PM This package is designed to be used alongside the Gym Master software package (sold separately by Gym Master). For assistance putting together a system that would allow entry with a mobile phone, please give us a call to discuss 1-866-500-5625
