Single Door Magnetic Lock Kit with battery backup for use with Gym Master access control equipment

For outswing doors with flip up deadbolts/hooks, glass storefront doors with aluminum frames or situations where modification to the door jamb is not permitted this is the perfect kit.

The 350V magnetic lock offers 1200lbs of holding force in a smaller footprint than most conventional magnetic locks allowing for an easy installation where space is limited.

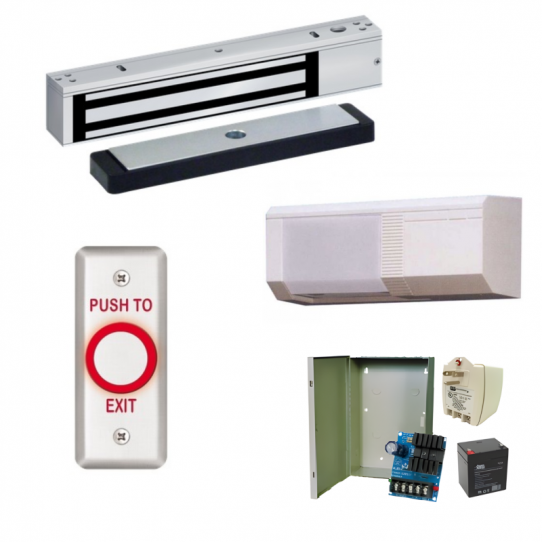

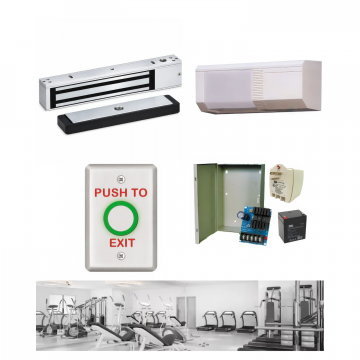

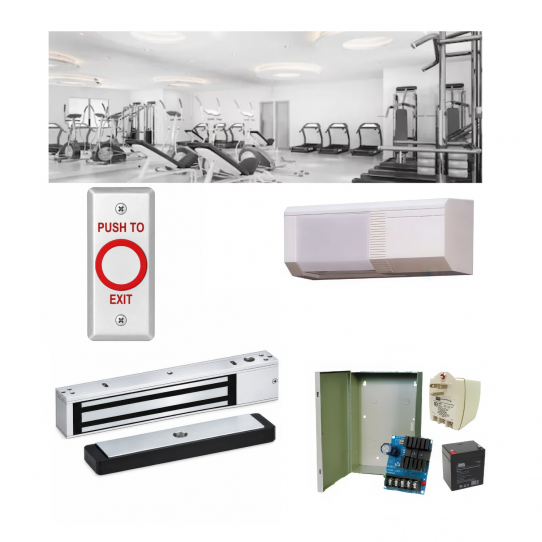

Kit Includes:

  • Slim magnetic lock (see photo)
  • 413NU narrow Illuminated "Push to Exit" button
  • PS520W Request to exit motion detector
  • MC-1 Power Supply with battery backup

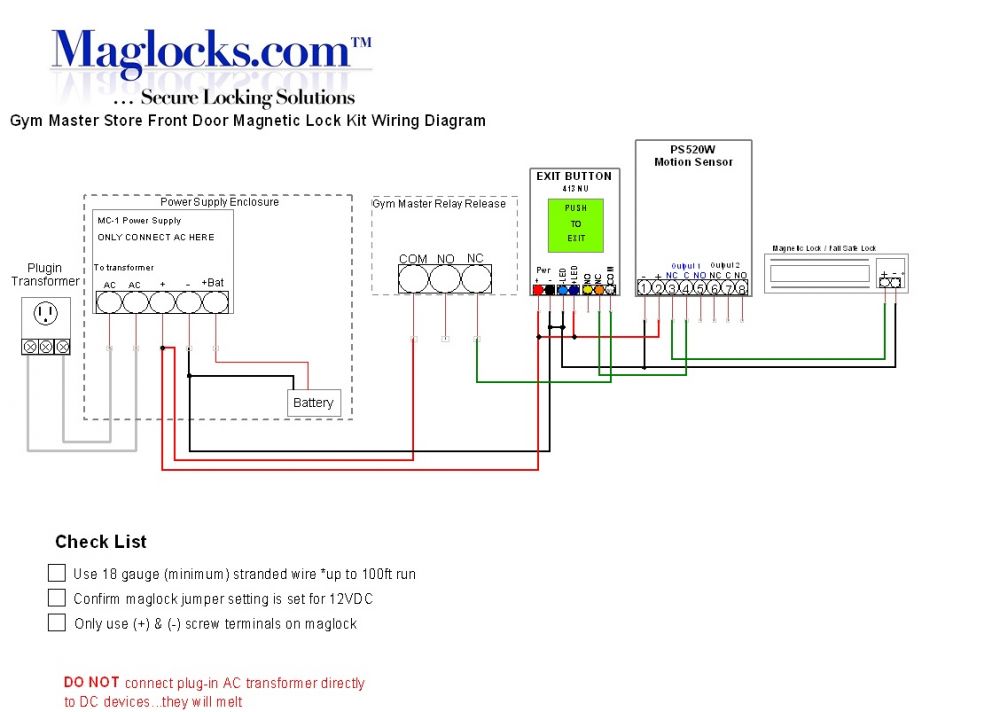

  • Complete Wiring Diagram
  • 100% Free Tech Support.

We recommend checking with your local Fire Marshal/Authorities to verify exit devices are up to your locale's code.

The included 350v maglock is designed for aluminum framed glass storefront doors. Electric strike is also available and standard conventional maglocks. Compatibility depends on your door type. Please contact us for lock selection if you are not sure.*

If you have any questions regarding which kit will be best for your project please contact us Toll Free at 1.866.500.5625

More Info +

Select Locking Device:
Wire (select a length):


Product Details

Product Overview

Single door magnetic lock kit complete with 1200lb slim line magnetic lock, motion sensor, exit button and power supply. When connected to the Gym Master software the magnetic lock will keep your doors secure while the included exit devices (motion sensor and push button) always allow for safe egress.

Entry through the door is easily programmed using the Gym Master software and equipment.  An extra remote release button can also be added above to quickly let visitors in who may not be enrolled in the Gym Master software.

Combined with our custom 1.2amp linear output power supply with battery backup this kit is easy to install on most doors and requires no permanent changes to the current door locks. If you have any questions regarding this kit please contact us at 1-866-500-5625


  • Power Supply Specifications: 1.2 amps at 12VDC
  • Battery Backup: 5amp/hr
Also Known As
GM-350V-Maglock-kit, Gym Master Door Lock Kit
Manufacturer Warranty
2 Year
Model Number
GM-350V Maglock kit
