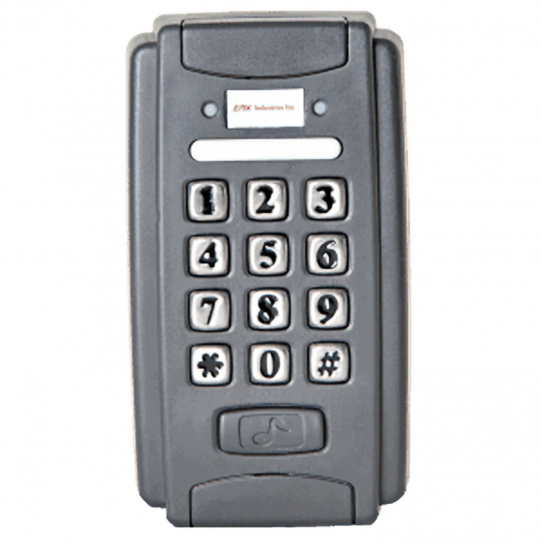

EMX PRX 320 Water Proof Proximity Keypad

Product Overview

EMX PRX-320 Water-Proof Proximity Keypad Access Control supports up to 2000 Users. The stand alone keypad access control is appropriate for use on gates or doors where there is need for resistance to climactic conditions.

Specifications

• Users: up to 2000 cards, or 8 user passwords
• Power: 12 VDC, 500 to 800 mA
• Current draw: 90 mA standby, 110 mA activated
• Read range: 5 in
• Operating modes: 4 (pass code only; proximity card only; card plus 4-digit pass code within 5 seconds; card or pass code)
• Programming: protected by 4-digit system pass code
• Memory: non-volatile

Product Features

• Supports up to 2000 users
• Low energy consumption. Can be used on solar installations
• Option of using a built-in contact for doorbell enunciators
• Use it as a keypad for some users and as a proximity card reader for others
• Programmable door lock settings
• Up to 2000 users by card or 8 user passwords

Operating Modes

Four door / gate opening modes:

• Mode 1 - Enter 4-digit pass code only (enter 4-digit pass code for access)
• Mode 2 - Proximity card access only (present proximity card for access)
• Mode 3 - Proximity card + 4-digit pass code (present proximity card plus 4-digit pass code within 5 seconds for access)
• Mode 4 - Proximity card or 4-digit pass code (present proximity card or 4-digit pass code for access

Note: Programming mode is protected by a 4-digit system pass code. All proximity cards must be registered prior to use. A maximum storage of 2000 cards or 8 user passwords. Non-volatile memory protects against data loss
