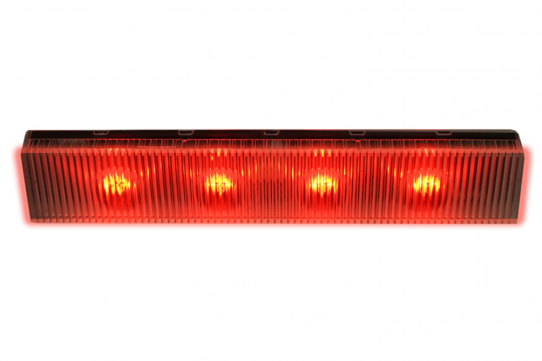

EA100 Multi-Mode Exit Annunciator LED bar

Standard Features

The SDC Exit Annunciator® is a highly visible multi-color signal device, that interfaces with Delayed Egress or standard EMLocks and can be used as a wall, ceiling, or frame mount indicator.

• Easy to install
• Suitable for retrofit or new construction
• Externally selectable color modes of Red, Green, Blue, White, Yellow and Purple
• Multi color LED technology
• Externally selectable Solid or Flashing modes
• Includes optional illumination cover for improved side visibility

Model

• EA100

Mechanical Specifications

• Dimensions: 10-1/2 inches L x 2-7/8 inches H x 1-5/8 inches D (266 L x 73 H x 41 D mm)
• Weight: 0.45 lbs

Electrical Specifications

• Voltage: 12/24 VDC @ 160mA max power

Specifications

• Model: EA100
• Also known as: SZ-EA100, SDC-EA100
• Manufacturer: SDC Security
• Type: Multi-mode exit annunciator LED bar (wall, ceiling or frame mount)
• Colors: Red, green, blue, white, yellow, purple (externally selectable); solid or flashing
• Voltage: 12/24 VDC, 160 mA max
• Dimensions: 10-1/2 inches L x 2-7/8 inches H x 1-5/8 inches D (266 x 73 x 41 mm)
• Weight: 0.45 lb
• UPC: 712905172682
• Warranty: 5 Year
