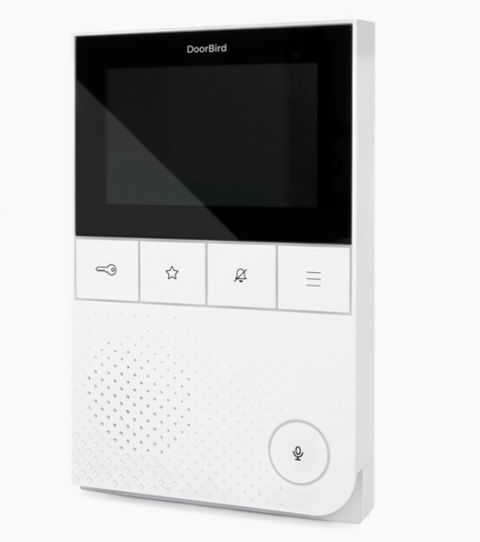

DoorBird A1101-W Indoor IP Video Station, Surface Mounting, White
$796.72
Product Overview
The DoorBird IP Video Indoor Station is an ideal addition to any DoorBird system. When paired with our DoorBird IP Video Door Intercom, the Indoor Station delivers a live video stream, two-way audio communication as well as control of doors and gates.
The Indoor Station is compact and designed to complement any smart home or business environment.
Standard Features
- WiFi 802.11b/g/n 2.4GHz, TCP/IP Ethernet Ready
- Dry Contact Relays for Door Release, Remote Chime, Doorbell or Opener
- PoE-A 802.3af Mode-A, 10/100Base-T
- iOS/Android App available on marketplace
Technical Specifications
- 15VDC Plug-In Transformer (connects to 110-240VAC) or PoE 802.3af Mode-A
- Dimensions: 7.07 inches x 4.53 inches x 0.98 inches (H x W x D)
- Operating Temp: 32° F to +131° F / 0° C to +55° C
- Humidity 0 to 85% RH (non condensing)
- Indoor use only
Video
- 4 inch True Color LCD Screen, IPS
- 800 x 480 px Resolution
Finishes
- A1101-W - White
*Video intercom functionality will require pairing unit with a DoorBird Video Intercom station (sold separately).
*Remote door unlock feature will require activation of an electronic lock (sold separately).
Contact us at 1-866-500-5625 for help setting up a complete system quote.
Specifications
- Model: A1101 (A1101-W)
- Manufacturer: DoorBird
- Type: Indoor IP video station, surface mount
- For use with: DoorBird video intercom stations (sold separately)
- Display: 4 inch true color LCD, IPS, 800 x 480 pixels
- Network: WiFi 802.11b/g/n 2.4 GHz; Ethernet 10/100Base-T; PoE 802.3af Mode-A
- Power: 15 VDC plug-in transformer (110-240 VAC) or PoE 802.3af Mode-A
- Relays: Dry contact for door release, remote chime, doorbell or opener
- App: iOS and Android
- Dimensions: 7.07 inches H x 4.53 inches W x 0.98 inches D
- Operating temperature: 32°F to 131°F (0°C to 55°C)
- Humidity: 0% to 85% RH (non-condensing)
- Mounting: Surface mount (optional table stand A8003)
- Finish: White
- Usage: Indoor use only
- UPC: 4260423860902
Also Known As:
DoorBird A1101, A1101-WFinish:
WhiteFor Use With:
DoorBird Video Intercom Stations (sold separately)Manufacturer:
DoorBirdModel Number:
A1101Mount:
Surface mount standard, (Table Stand "A8003" optional)UPC Code:
4260423860902Usage:
Interior Use Only
1 Question asked on DoorBird A1101-W Indoor IP Video Station, Surface Mounting, White •
Q
james • 12/19/2021, 1:51:55 PM
Will this work with multiple (two in my case) DoorBird intercoms installed on one property?
A
12/20/2021, 3:14:58 PM
Yes, the A1101 indoor station can work with multiple DoorBird intercoms. You can even set individual clime alerts on the A1101 to help identify which intercom they are calling on.
