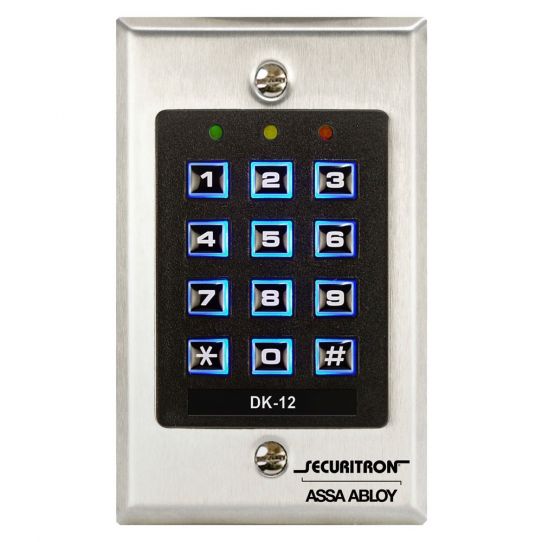

DK-12 Single Gang Digital Keypad, 99 Users

Product Overview

The DK12 standalone keypad and controller is ideal for lower security requirements such as traffic control. Easy to install and easy to program, the one-piece DK-12 supports 99 user codes, including Passage mode and Lockout mode.

Standard Features

• Stainless steel backplate with 12 illuminated keys (10 digits + "*" and "#" keys
• One piece digital keypad specifically designed for control of electric locks
• Easy to install with simple hand tools Operates on low voltage AC or DC current
• Audible keystroke echo Single gang, stainless steel plate with plastic backbox
• 99 user code capability which is programmable from the keypad
• Passage mode and Lockout mode
• 5 Amp SPDT timed, control relay output
• Red and Green LEDs are visible indicators
• Yellow LED provides programming prompt
• True 10 digit operation
• Optional weather cover available (sold separately)
• Request to Exit (REX) input
• MagnaCare® lifetime replacement, no fault warranty

Technical Specifications

• Current Draw and Voltage: 70mA, 12 or 24VDC
• Operating Temperature: -10°F to +140°F [-23°C to +60°C]
• Maximum 30VDC or 300VAC switched voltage

Specifications

• Model: DK-12
• Also known as: SEC100DK12, DK12, SN-DK12, HES-DK12
• Manufacturer: Securitron
• Type: Single-gang standalone digital keypad and controller
• User codes: 99
• Keys: 12 illuminated (10 digits plus * and #)
• Relay output: 5 A SPDT timed control relay
• Maximum switched voltage: 30 VDC or 300 VAC
• Operating voltage: 12 or 24 VDC (low-voltage AC or DC)
• Current draw: 70 mA
• Operating temperature: -10°F to 140°F (-23°C to 60°C)
• Plate: Stainless steel with plastic backbox
• Features: Passage mode, lockout mode, REX input
• UPC: 784607040385
• Warranty: Lifetime (MagnaCare)
