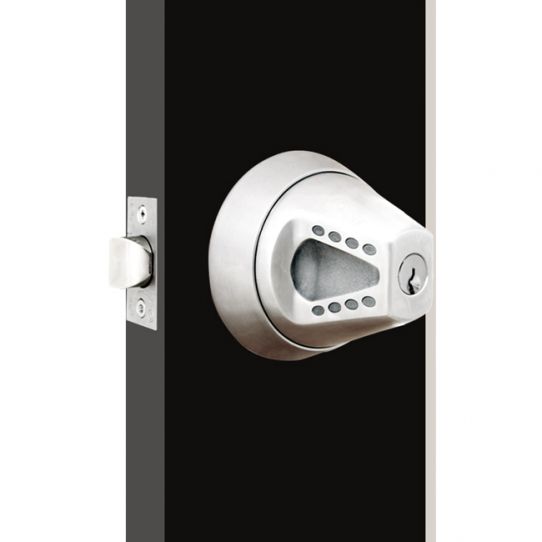

CRXK Grade 1 Cylindrical Lock with Ligature Resistant Trim

20% Off MSRP

CRXK Grade 1 Cylindrical Lock with Ligature Resistant Trim

$609.60 $762.00


For facilities housing patients at risk.

Available in (7) different functions, see the Function List here for complete description of operation or give us a call with any questions,1-866-500-5625

More Info +

Select Function:
Select Finish:


Product Details

Product Overview

TownSteel is pleased to introduce the most complete line of Ligature Resistant locks available today in the commercial contract hardware industry.

Applications: Hospitals, Correctional Facilities, Detention Centers, Mental Health Rehabilitation Centers, etc.


  • For facilities housing patients at risk
  • For door thickness 1-3/4 inches - 2 inches
  • 2-3/4 inches backset standard, (5 inches optional by special request)
  • Non-handed, reversible
  • Refer to Function Section for available functions
  • US32D finish
  • Stainless steel rose, 4 inches in diameter
  • Stainless steel knob, ligature resistant
  • Stainless steel faceplate 1-1/8 inches x 2-1/4 inches
  • Stainless steel strike, ASA, 1-1/4 inches x 4-7/8 inches
  • Through-bolt mounting, tamper resistant mounting screws, for wood and metal door
  • 6 pin, Schlage C keyway standard, 2 keys per cylinder
  • Small Format IC not available
  • 5-year limited warranty

Code Compliance

  • ANSI/BHMA - Complies with ANSI/BHMA A156.2-2011 Grade 1
  • UL/ULC - UL 10C listed 3-hour rating
  • BAA - Meets requirements for the Buy American Act
Also Known As
TOW200CRXK86630, CRXK86630
Town Steel
Model Number
UPC Code
