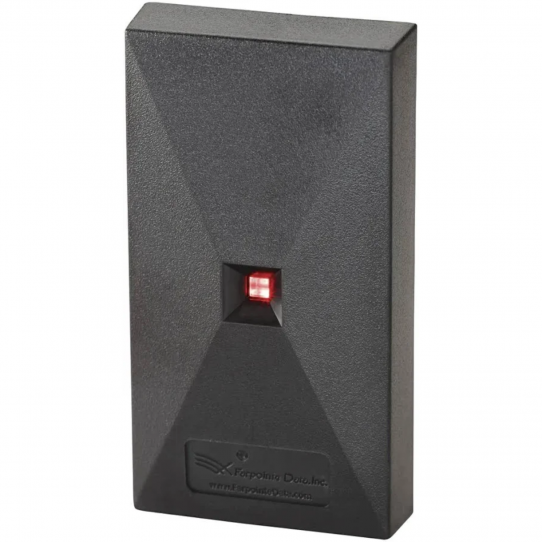

Cobra Controls PRX-5HC HID (H10301), Prox Reader

Product Overview

The PRX-5HC single gang mount proximity reader from Cobra Controls offers reliable RFID detection in a sleek stylish design. The PRX-5HC can be surface mounted or installed in a standard sing gang box.

The PRX-5HC can be used with most Access Control systems that accept a Wiegand 26bit Proximity Reader input.

Compatible Systems Include:

• Cobra Controls ACP-T & ACP-N series panels
• Rosslare AC-825IP panels
• SDC IPRO, IPDCE panels
• + more

Standard Features

• Single gang size
• 26-bit Wiegand data output
• Built-in transceiver antenna, 125KHZ
• Built-in Bi-color LED and buzzer
• Waterproof (IP67)
• Limited lifetime warranty

HID® is a Registered Trademark of HID Global Corporation

Specifications

• Model: PRX-5HC Proximity Reader (HID H10301 compatible)
• Manufacturer: Cobra Controls
• Frequency: 125 kHz
• Card Format: HID 26-bit (H10301) and Cobra Controls cards and tags
• Output: 26-bit Wiegand
• Read Range: Up to 8 inches (203 mm)
• Current: 35 mA typical; 75 mA peak at 12 VDC
• Operating Temperature: -40° F to 149° F
• Size: 4.6 inches L x 3 inches W x 0.4 inch D (116 mm x 77 mm x 10 mm)
• Protection: IP67
• Mount: Single gang box or surface mount
• Finish: Black and cream white covers provided
• Features: Bi-color LED and buzzer
• Warranty: Limited lifetime
