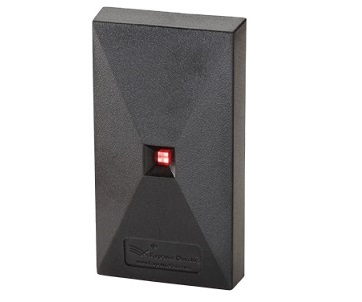

Cobra Controls PRX-3HC HID (H10301) Proximity Reader

Product Overview

The PRX-3HC Single slim mullion mount proximity reader from Cobra Controls offers reliable RFID detection in a sleek stylish design. The PRX-3HC can be surface mounted or installed on a standard door mullion. Epoxy sealed weather-proof construction, suitable for interior and exterior use.

Standard Features

• Narrow mullion mount
• 26-bit Wiegand data output
• Built-in transceiver antenna, 125KHZ
• Built-in Bi-color LED and buzzer
• Waterproof (IP67)
• Limited lifetime warranty

HID® is a Registered Trademark of HID Global Corporation

Specifications

• Model: PRX-3HC Proximity Reader (HID H10301 compatible)
• Manufacturer: Cobra Controls
• Frequency: 125 kHz
• Card Format: HID 26-bit (H10301) and Cobra Controls cards and tags
• Output: 26-bit Wiegand
• Read Range: Up to 6 inches (152 mm)
• Current: 30 mA typical; 75 mA peak at 12 VDC
• Operating Temperature: -40° F to 149° F
• Size: 3.2 inches L x 1.7 inches W x 0.7 inch D (80 mm x 43 mm x 17 mm)
• Protection: IP67
• Mount: Narrow mullion or surface mount
• Finish: Black and cream white covers provided
• Features: Bi-color LED and buzzer
• Warranty: Limited lifetime
