Cobra Controls CC-3800-EM waterproof Prox Reader, Keypad

$199.00

The Cobra Controls CC-3800-EM is a RFID proximity card/ PIN code Access Controller perfect for outdoor environment. Compatible with all fail secure/ fail safe magnetic locks and electric strikes.

Features

Proximity card, PIN code or Prox + PIN
Water proof design
Epoxy sealed electronics in a high quality metal case
Will read Prox cards and accept PIN codes while completely immersed in water up to 1 meter deep
Luminous keyboard
Built in anit-tamper alarm
Supports up to 2,000 users
Built-in SPDT, 3A relay
Direct programming, (no controller or computer required)

Bonus Offer: Includes 5 Free PCS-1 Proximity cards. A $12.50 value

The IP scale indicates the unit is dust proof, and protected from continuous immersion in water 1 meter deep (does not include saltwater).

To protect the unit from direct elements such as saltwater, ice, snow, etc, we highly recommend the STI-6516 cover.

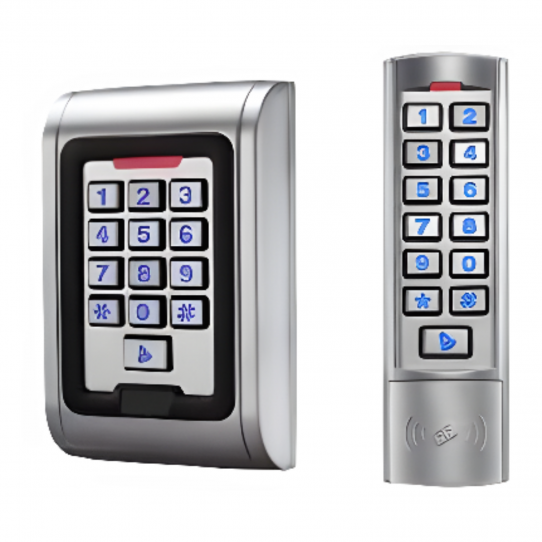

Select Keypad and Proximity Reader Style: CC-3800 Single Gang Keypad and Proximity Reader (4-3/4 L x 3-1/8" W x 1" D) +$0.00 CC-3800-MUEM Narrow Keypad & Proximity Reader (6" L x 1-3/4" W x 1-1/8" D) +$0.00

Options:

STI-6516 Weather guard, protects against saltwater/dust/snow/ice +$25.54

Qty

Product Profile:

The Cobra Controls CC-3800-EM is a PIN/RFID card reader that can be used as a stand alone unit or used as a reader when paired with an access control system using the 26-bit Wiegand output. The CC-3800 supports EM4100 cards/tags and is one of the most advanced stand alone access controller keypads on the market.

Epoxy sealed electronics, high quality metal construction and a built in tamper alarm (photosensor) makes the CC-3800 the perfect choice for harsh exterior applications where vandalism and severe weather conditions are fought. Widely used in public facilities, office buildings, home, office and residential areas.

Features:

2,000 User capacity
Back-lit keypad for easy night time operation
PIN codes or RFID prox operation
Three modes of operation:

Card or PIN (default)
Card & PIN
Card Only

Adjustable door open delay 0-99 seconds
Form C Relay: COM, NO, NC
Standalone access control, all programming done directly at keypad
Door Bell Button. (NO contact) *interfaces with most door bell systems

Technical Specifications

Voltage: 12VDC
Static Current: 30mA
Reading Range:3-8cm
Capacity: 2000 users
Ambient Temperature:-45° C to 60° C
Ambient Humidity:10%-90%
Electric lock output: 1 Amp max
Alarm output: 20A
Open time:0 - 99 seconds (adjustable)

Dimensions

CC-3800 Single Gang Size: 4-3/4 inches L x 3-1/8 inches W x 1 inches (120L x 80W x 25Dmm)
CC-3800MUEM Narrow Size: (6 inches L x 1-3/4 inches W x 1-1/8 inches D)

Water Resistant Rating

Cobra Controls CC-3800-EM is rated as IP68
The IP scale indicates the unit is dust proof, and protected from continuous immersion in water 1 meter deep.

Also Known As:

CC-3800, CC-3800 Single Gang, CC-3800-Narrow

Format:

26-bit Cobra

Manufacturer:

Cobra Controls

Manufacturer Warranty:

2 Year

Model Number:

CC-3800-EM

Operation Keypad:

PIN/Prox card

Power Requirements:

12VDC

Full Programming Instructions PDF

QuickStart Programming

5 Questions asked on Cobra Controls CC-3800-EM waterproof Prox Reader, Keypad • Ask a Question

Q Rod • 10/09/2023, 9:21:13 AM Can this be configured so that a user must present both a card and enter a PIN for entry?

A 10/10/2023, 12:31:30 PM Yes, this unit can be configured for Dual Factor Authentication where you would have to swipe your card & enter a PIN for entry. The three configuration modes are as follows: Card or PIN (default), Card & PIN, Card only. For any further questions regarding this unit feel free to give us a call at 1-866-500-5625

Q Jesse • 01/23/2024, 9:17:37 AM The cc-3800 muem panel has a bell at the bottom. Does it have a doorbell feature to ring for access?

A 01/23/2024, 4:24:05 PM The bell button will create a contact closure between 2-wires on the rear of the unit. These wires can be used to trigger an electronic device like a doorbell (sold separately). *note, depending on the draw of the doorbell an additional relay may be required to prevent damage to the bell contacts. Please give us a call to discuss this in further detail or for our doorbell recommendation, 1-866-500-5625
