B-Tron 24 VDC, Regulated, 4-32 fused outlets, 6 Amp, Fire
Processing...

B-Tron 24 VDC, Regulated, 4-32 fused outlets, 6 Amp, Fire

$375.00

Overview

24 VDC Power Supply for CCTV cameras, heaters, Magnetic Locks, and other video accessories. Regulated, 4 to 32 fused outlets providing 6 amps of total continuous supply with fire alarm interface. Battery back-up capable

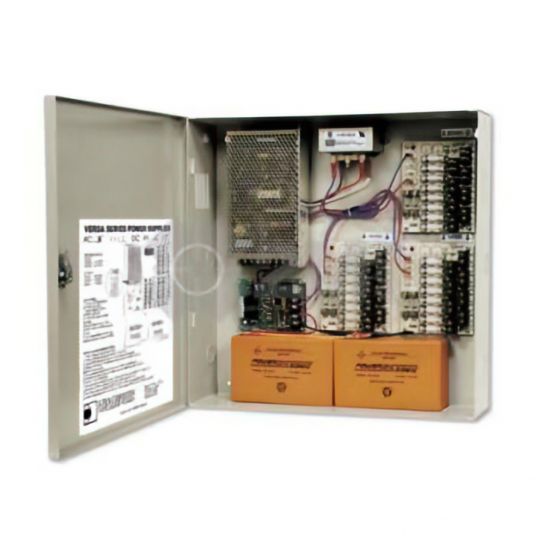

  • B-Tron power supply includes power supply board, plug in transformer, enclosure and battery backup capable.
  • Recommended for systems using fail safe locks (magnetic locks). Power supply will automatically convert to battery backup power (battery not included) in the event of a power failure to ensure your system remains operational and secure.
  • 24 Amps of total continuous supply
  • Also available in 12 VDC models with 1 to 32 outlets

    More Info +


    Specify Number of Fused Outlets:
    Add Battery Back-up:

    Qty

    Product Details

    Product Overview

    Power Supply in enclosure providing 24 VDC @ 6 amps of total continuous supply. The versa 6amp series by BTron is available in configurations of 4, 8, 16, 24 and 32 fused outlets with Fire Alarm Interface. 24 VDC power supply for CCTV cameras, heaters, Magnetic Locks and other video accessories

    • 24 VDC
    • 12amp of total continuous supply.
    • 4, 8, 16, 24 or 32 fused, electronically regulated outlets.
    • Fire Alarm Interface

    Features and Specifications

    • Fuse protected outlets available in 4, 8, 16, 24 or 32 outlet configurations
    • Electronically regulated outputs
    • Output fuses are rated @ 180 milliamp
    • 115 VAC 50/60Hz, 1.45amp input
    • Input fuse is rated @ 3.5amp
    • Surge suppression
    • AC/DC power LED indicator
    • Unit maintains camera synchronization
    • Battery back-up capable
    • UL listed upon request

    Enclosure

    • Dimensions: 16 inch H x 16 inch W x 4.5 inch D
    • 1/2 inch and 3/4 inch combination knockouts

    Applications and Use

    • 12 VDC power for CCTV cameras, heaters, Magnetic locks, and other video accessories.
    • Recommended for systems using magnetic locks. Power supply will automatically convert to battery backup power (battery not included) in the event of a power failure to ensure your system remains operational and secure.
    Maglocks.com Rating
    Best
    Manufacturer
    B-Tron
    Manufacturer Warranty
    Lifetime
    Model Number
    Btron24V6A
    Power Requirements
    24VDC
    Status Monitor
    n/a
