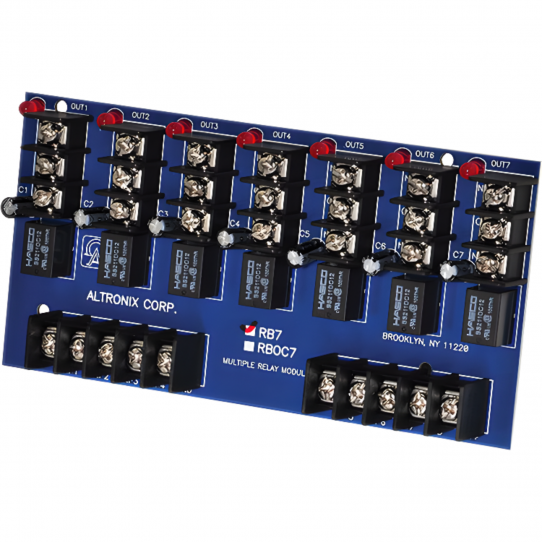

Altronix, RB7 Ultra Sensitive Relay Module, 7 isolated outputs

Product Overview

RB7 Multiple Relay Module incorporates seven (7) isolated form "C" relay outputs which can be activated via positive (+) low current trigger inputs. Typical applications include the switching of alarm devices (eg. annunciator, signals, etc.) from PGM outputs of alarm panels or from another source.

Specifications

• Input Voltage: 12 or 24 VDC
• Current Draw: 120 mA
• Outputs: Seven isolated form C relays, 1 A at 120 VAC or 28 VDC
• Trigger Inputs: Seven independent positive (+) triggers, 3 to 24 VDC at 2 mA minimum
• Indicators: Seven trigger LEDs
• Operating Temperature: -25°C to 55°C (-13°F to 131°F)
• Dimensions (board, approx.): 6.5 inch W x 3.25 inch L x 1 inch H (165.1 mm W x 82.55 mm L x 25.4 mm H)
• Warranty: Lifetime
