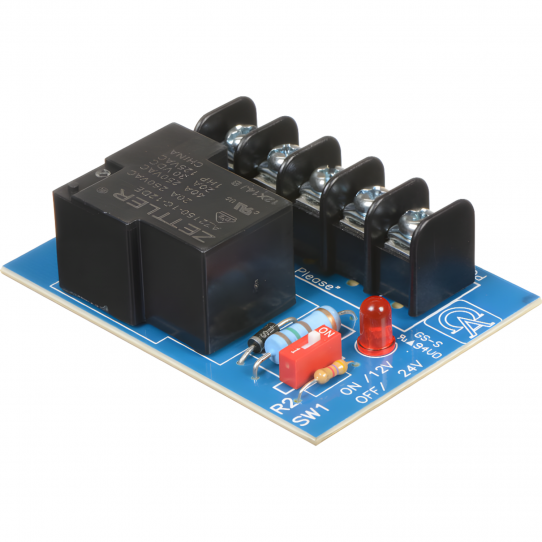

Altronix RB30 Relay Module, 12/24VDC Operation at 95mA Draw, 30A/28VDC, 120VAC or 277VAC SPDT Contac

$26.13 $29.03

Overview

RB30 relay module is designed for continuous duty. This rugged, reliable and dependable relay will handle many switching application.

Popular applications include using low voltage DC keypads or proximity card readers to switch AC devices like lights, pumps, airconditioners etc...


Key Features:
• Use low voltage DC input to switch AC devices
• 12 or 24VDC input voltage, 95mA draw
• 30 amp/28VDC, 120VAC or 277VAC SPDT Contact
• Lifetime Warranty.

More Info +


Qty

Product Details

Product Overview

RB30 relay module is designed for continuous duty. This rugged, reliable and dependable relay will handle many switching application.

Features and Specifications

  • Input Voltage:
    • 12VDC or 24VDC operation
    • Current draw: 95mA
  • Contact Rating:
    • 30amp/28VDC, 120VAC or 277VAC SPDT contacts
  • Electrical:
    • Operating temperature: -25° C to 55° C ambient
    • System AC input VA requirement: - 12VDC: 11.4VA. - 24VDC: 22.8VA
  • Lifetime Warranty

Dimensions

  • Dimensions (approximate): 2 inches W x 2.75 inches L x 0.75 inches H (50.8mm W x 69.85mm L x 19.05mm H)
Also Known As
AX-RB30, ALT-RB30, RB30, ALT100RB30
Manufacturer
Altronix
Manufacturer Warranty
Lifetime
Model Number
RB30
Power Requirements
24VDC/12VDC
UPC Code
782239930302
