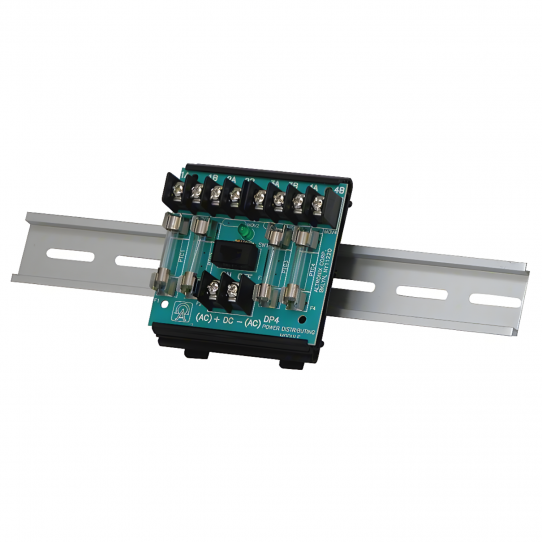

Altronix, DP4CB DIN Rail Power Distribution Module

Product Overview

Altronix DP4CB Power Distribution Module conveniently converts a single AC/DC input into four (4) individual PTC protected outputs.

Input:

• Handles up to 48VAC/VDC

Output:

• Four (4) PTC protected outputs.
• Outputs are rated @ 3.5A
• Surge suppression

Features

• AC power LED
• Power ON/OFF switch
• Includes Snap Track (Altronix model #ST3) and mounting clips for DIN Rail mounting capability.

Electrical:

• Operating temperature: 0° C to 49° C ambient.
• Altronix Lifetime Warranty

Dimensions

• Board (approximate): 3.25 inch W x 3 inch L x 0.75 inch H (82.55mm W x 76.2mm L x 19.5mm H)
