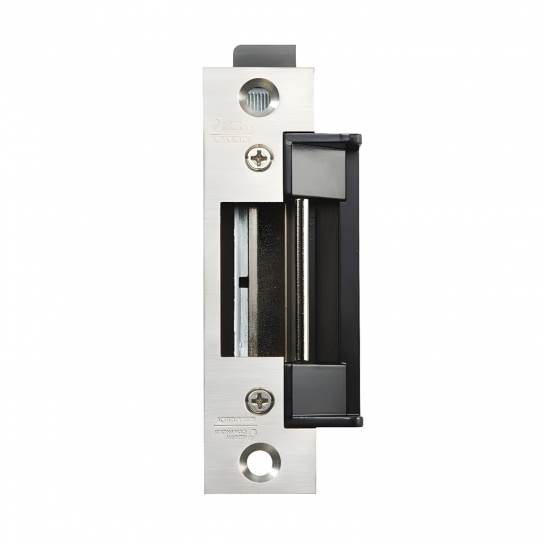

Alarm Controls AES-100 Grade 1 Electric Strike

$136.00 ~~$160.00~~

Overview

Designed for heavy-duty applications, the all-in-one AES-100 offers dual voltage and field selectable fail secure/fail safe operation. Deep latch cavity accommodates cylindrical locksets with a 5/8” to 3/4” throw in steel, wood or aluminum frames.

Product Overview

Features

BHMA Grade 1

UL 1034 Burglary Resistant, 1500 lb. static strength

Static strength 70 ft-lbs. Dynamic strength endurance rating 500,000 UL tested, 1,500,000 factory tested

Strike depth 1-1/2”

Field selectable, fail safe/fail secure

Dual voltage 12/24 VAC or VDC, continuous duty operation on DC

Fully reversible for right or left hand doors

Mounting kit includes two 4-7/8” stainless steel face plates (one round corner and one square corner)

Current draw 12 VAC 130mA, 24 VAC 70mA

Current draw 12 VDC 210mA, 24 VDC 105mA

7-15/16” round corner strike plate available. Model number STR00004 (Please Call to Order)

Dimensions

1-1/2'' W x 4-7/8'' H x 1-1/4'' D(31.8W x 124H x 31.8D mm)

Maglocks.com Rating

Better

Manufacturer

Alarm Controls

Manufacturer Warranty

2 Year

Model Number

AES-100

Power Requirements

24VDC/12VDC

Status Monitor

Standard
