Alarm Controls, 1200DE Delayed Egress Magnetic Lock

Product Overview

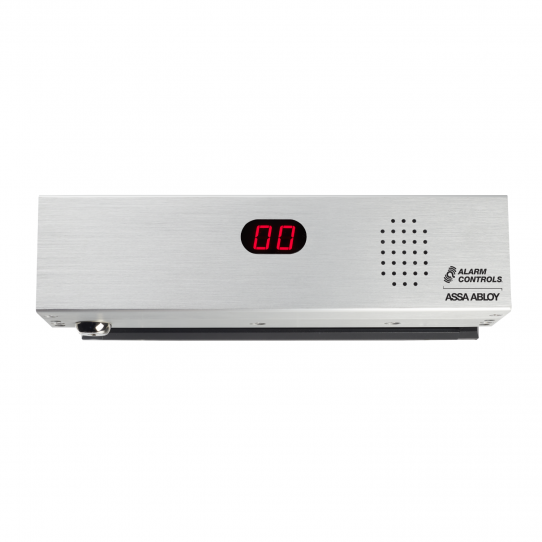

Alarm Controls 1200DE bracket mounted, single magnetic lock with 1200 lbs of holding force that can be easily installed without special tools.

Designed for applications that require a locking feature that delays the opening of a door. Includes integrated key reset, digital display, and field configurable settings.

Code specific models also available. For use on interior and perimeter exit, single, out-swinging doors.

Standard Features

• Choice of English, French/English or Spanish/English voice message
• Digital countdown LED display
• Door prop alarm
• Energy savings mode
• Field configurable settings include:
• Voice message language
• Choice of voice and alarm tone
• or alarm tone only
• Nuisance delay times 0, 1, 2, 3 seconds
• Bypass delay times 0, 10, 15, 30 seconds
• Door movement activation
• Auto or manual relock
• Integrated two function keyswitch; Bypass (REX) and alarm reset
• Required sign included
• Clear anodized (US28) finish standard

Specifications

• Holding Force: 1200 lb
• Voltage: 12 or 24 VDC input, auto sense
• Max Current Draw: 825 mA at 12 VDC; 490 mA at 24 VDC
• Magnet Size: 10 1/2 inches L x 2 7/8 inches H x 2 3/4 inches W
• Armature Housing Size: 9 3/4 inches L x 3 inches H x 1 inch D
• Nuisance Delay Times: 0, 1, 2 or 3 seconds
• Bypass Delay Times: 0, 10, 15, 30 seconds
• Models: 1200DE (selectable delays); 1200DE-CA15S (California, 15 second fixed delay); 1200DE-CA30S (California, 30 second fixed delay); 1200DE-CH (Chicago, 15 second exit delay, 1 second nuisance delay, 0 second bypass, fixed)
• Voice Message: English, French/English or Spanish/English
• Listings: UL 294; UL 10C
• Finish: Clear Anodized (US28) standard
• Warranty: Limited Lifetime
