Aiphone, JVS-1V Video Intercom Box Set with Door Release

Description

The JV Series conveniently identifies visitors at locked doors. Inside stations feature easy to use touch buttons and a large, 7 inch video screen.

The master station features a 7 inch screen to view visitors and configure settings. The electrostatic touch buttons to the right of the screen allow users to unlock the door and activate an exterior device. There are multiple call tone options available for the station. Communication with the door station can either be hands-free or push-to-talk. Still images from past calls can be viewed and deleted from the station. The station can store up to 30 images.

The JV Series can accommodate one door and up to two inside stations (secondary master station sold separately). Ready to install box sets include one door station, one inside station, and power supply.

Classic Video Intercom kit with electronic door release button, NO Apps, NO Wifi, NO Internet or software required.

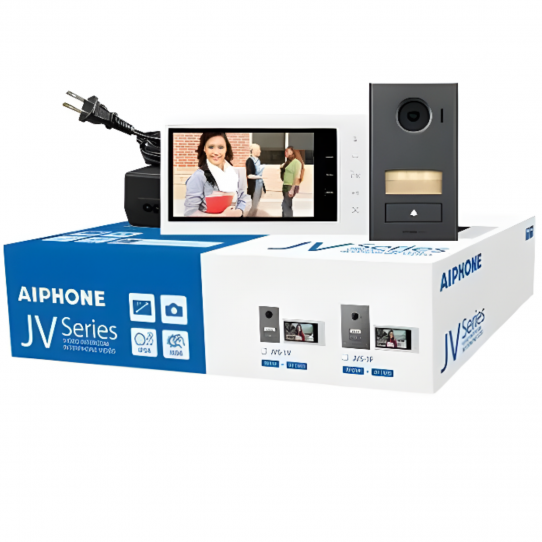

This Boxed Set includes:

• (1) JV-1MD Master Monitor
• (1) JV-DV Surface Mount Door Station
• (1) PS-2420UL Power Supply

The JV-1MD features a 7 inch LCD screen with electrostatic touch buttons for communication and door release.

The JV-DV is a surface mount color video door station with a die-cast aluminum cover. IP54 rated, ok for outdoor use

The PS-2420UL is a 24V DC, 2-amp UL Listed Power Supply for 110-140VA usage

*Aiphone recommends the use of 18/2 solid wire for intercom connections. See part# 87180250C (sold separately)

*Door release feature will require Electronic Locks (sold separately)

Specifications

• Includes: JV-1MD master monitor; JV-DV surface mount door station; PS-2420UL power supply
• Screen: 7 in LCD with electrostatic touch buttons
• Door station: color video, die-cast aluminum cover, IP54 (outdoor use)
• Power supply: 24 VDC, 2 A, UL listed, for 110 to 140 VA usage
• Image storage: up to 30 still images
• Capacity: one door and up to two inside stations (secondary master station sold separately)
• Wiring: 18/2 solid wire recommended (part 87180250C, sold separately)
• Notes: door release requires electric locks (sold separately); no apps, WiFi, internet or software required
